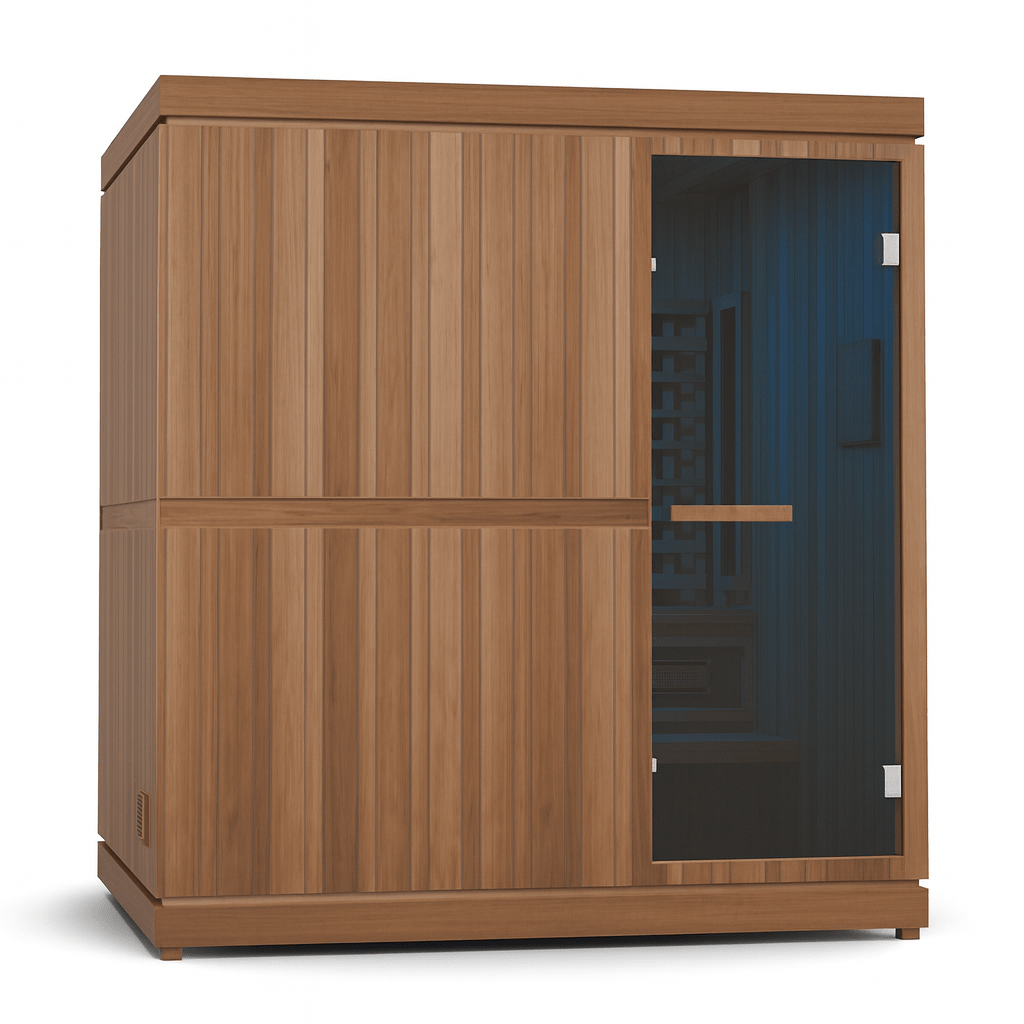

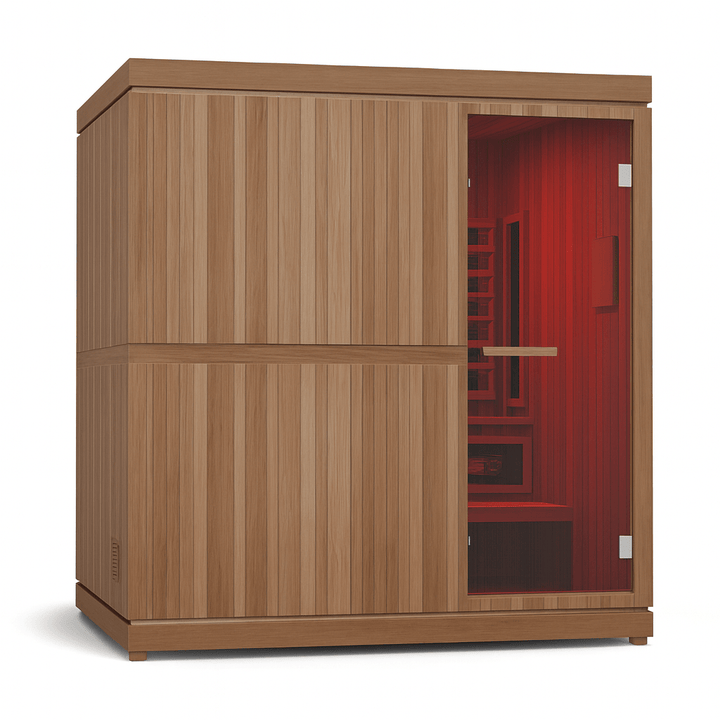

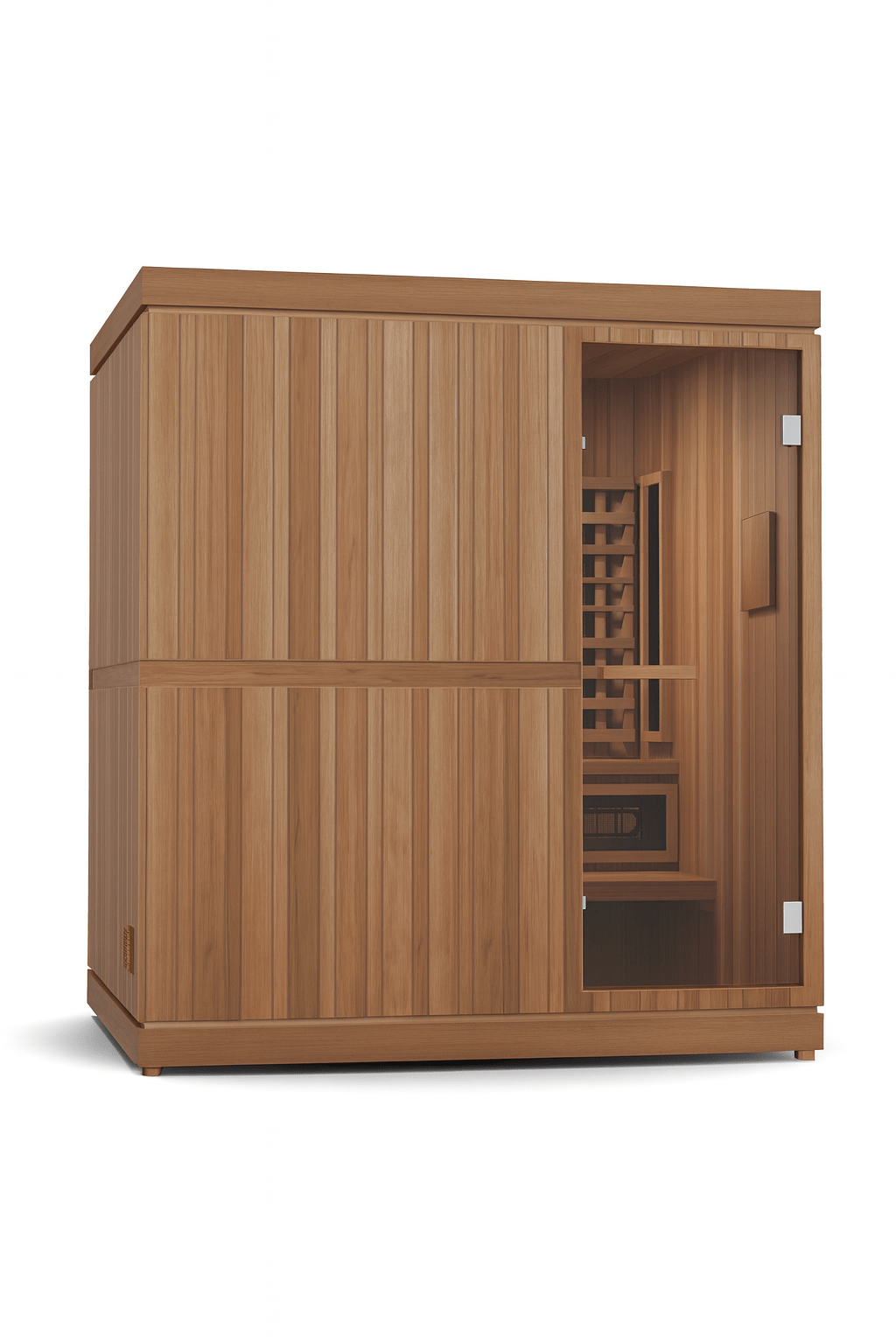

Finnmark FD-5 Trinity XL 4-Person Combination Sauna
The Finnmark FD-5 Trinity XL combines Spectrum Plus™ infrared heaters, a Harvia KIP45B 4.5 kW traditional sauna heater, and integrated red light in a spacious cedar and aspen cabin.
The Finnmark FD-5 Trinity XL infrared and steam sauna combo is designed for homeowners who want a larger all-in-one sauna experience. Its Harvia heater warms sauna stones for traditional sauna bathing. Adding water to the stones can create steam; this is not a steam room with a steam generator.
The interior is Western Canadian Cedar, and the exterior is Thermo-Aspen. The FD-5 also includes near-infrared ceiling lights, Spectrum Red Light™ Therapy with chromotherapy, a Wi-Fi touchscreen, Bluetooth audio, and 8 mm tempered glass.
Ready to order or planning your space?
Review the dimensions, electrical requirements, delivery access, and installation documents before checkout.
Why Choose the Finnmark FD-5 Trinity XL?

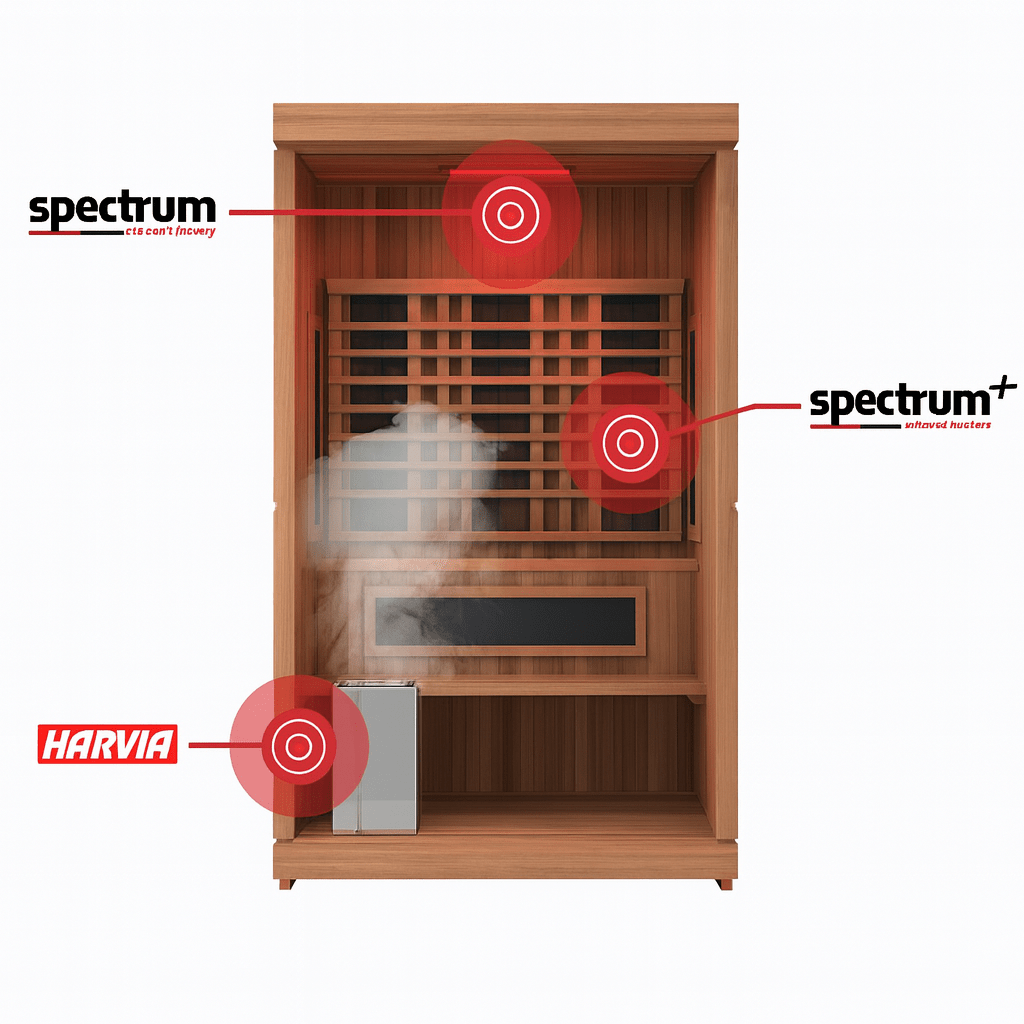

Infrared and Traditional Heat
Use Spectrum Plus infrared heating or the separate Harvia stone heater. Follow the Finnmark and Harvia manuals for operation, stone loading, and water use.
Four-Person Cabin
The FD-5 is listed as a 4-person home sauna, with a two-tier bench system and an exterior footprint of approximately 75 inches wide by 64 inches deep.
Integrated Lighting and Audio
The package combines near-infrared ceiling lights, red light and chromotherapy, a Wi-Fi touchscreen controller, Bluetooth audio, and 6-inch Hi-Fi speakers.
Finnmark FD-5 Trinity XL Features
- Spectrum Plus™ infrared heaters: UL-listed short-wave infrared heaters rated at 3,150 watts.

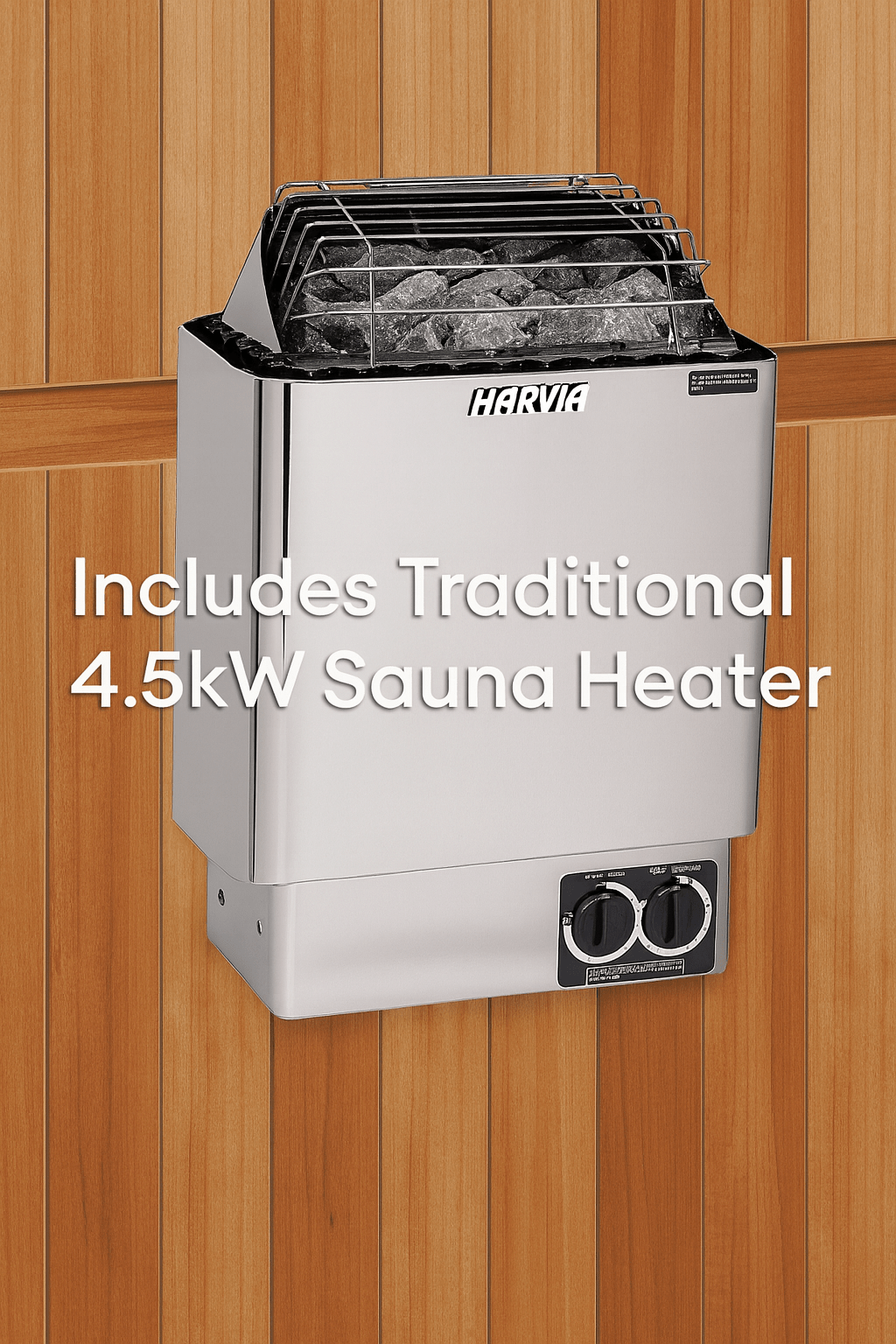

- Traditional sauna heater: Wall-mounted Harvia KIP45B, rated at 4.5 kW, with built-in controls.

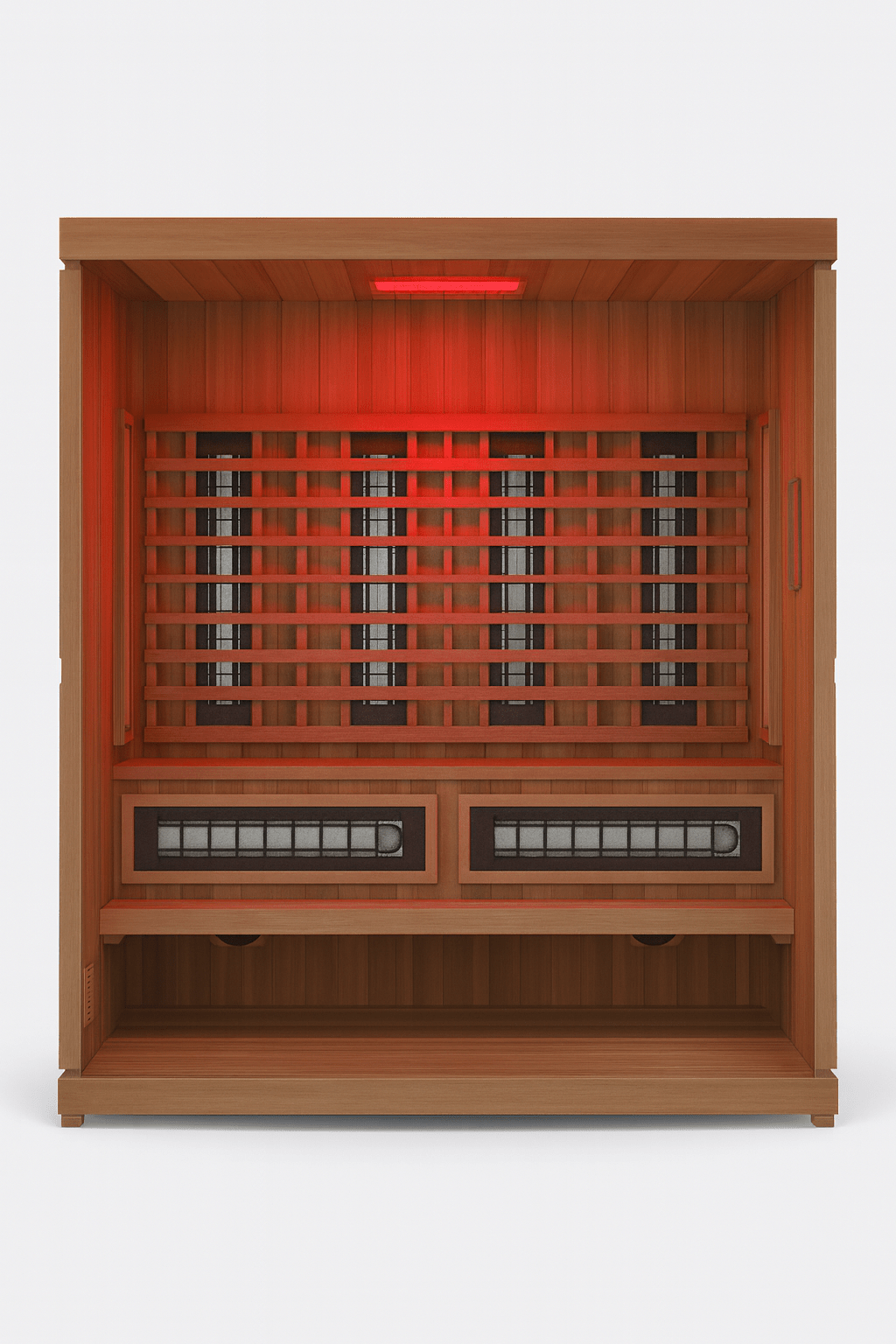

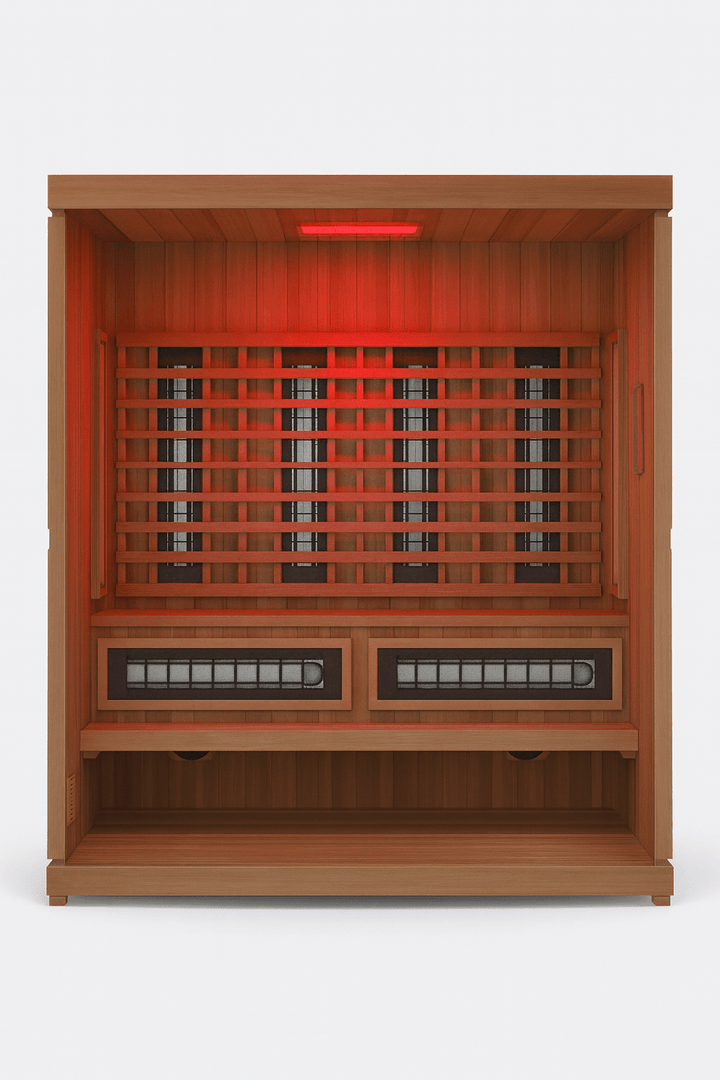

- Red light and chromotherapy: Spectrum Red Light™ panel with 192 LEDs at 650 nm, combined with Spectrum LED near-infrared ceiling lights.

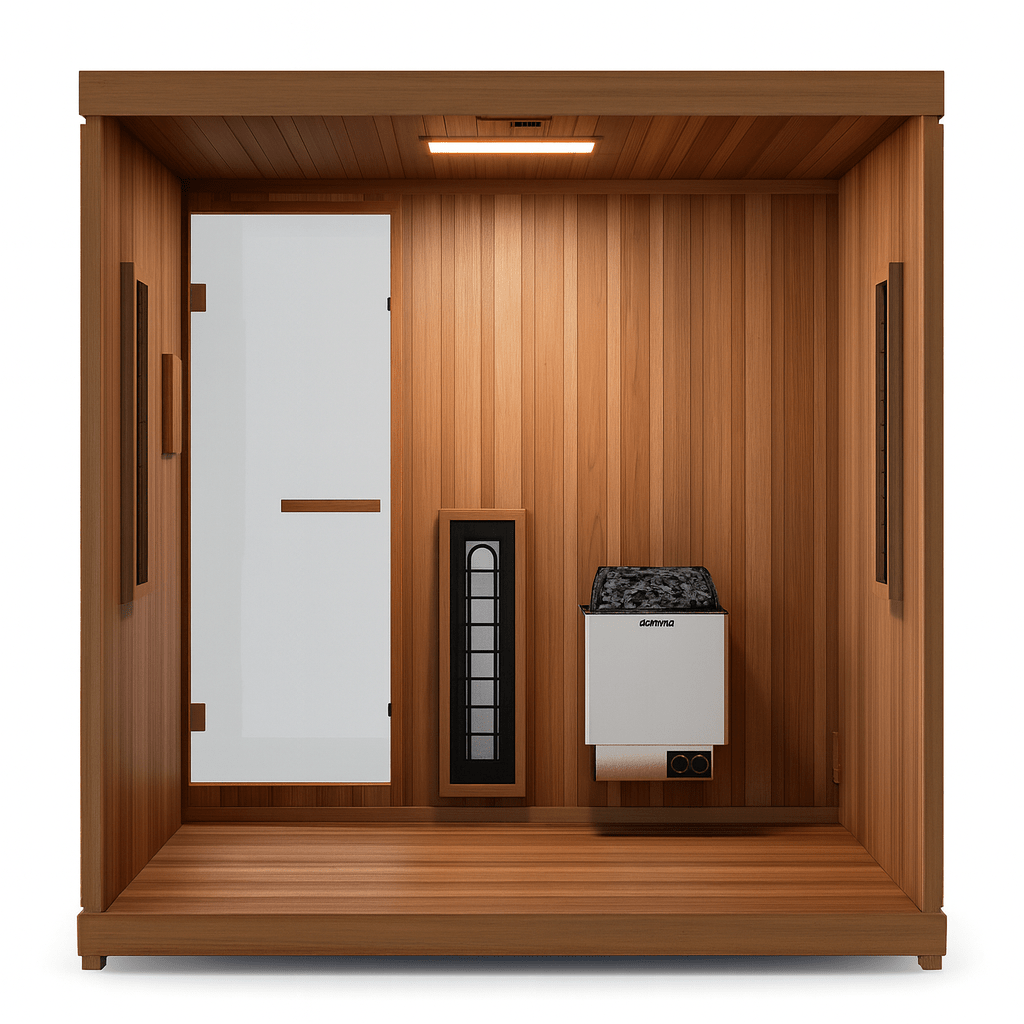

- Wood construction: Western Canadian Cedar interior and Thermo-Aspen exterior.
- Controller and audio: Controller 2.0 LCD Wi-Fi touchscreen with Bluetooth audio and 6-inch Hi-Fi speakers.

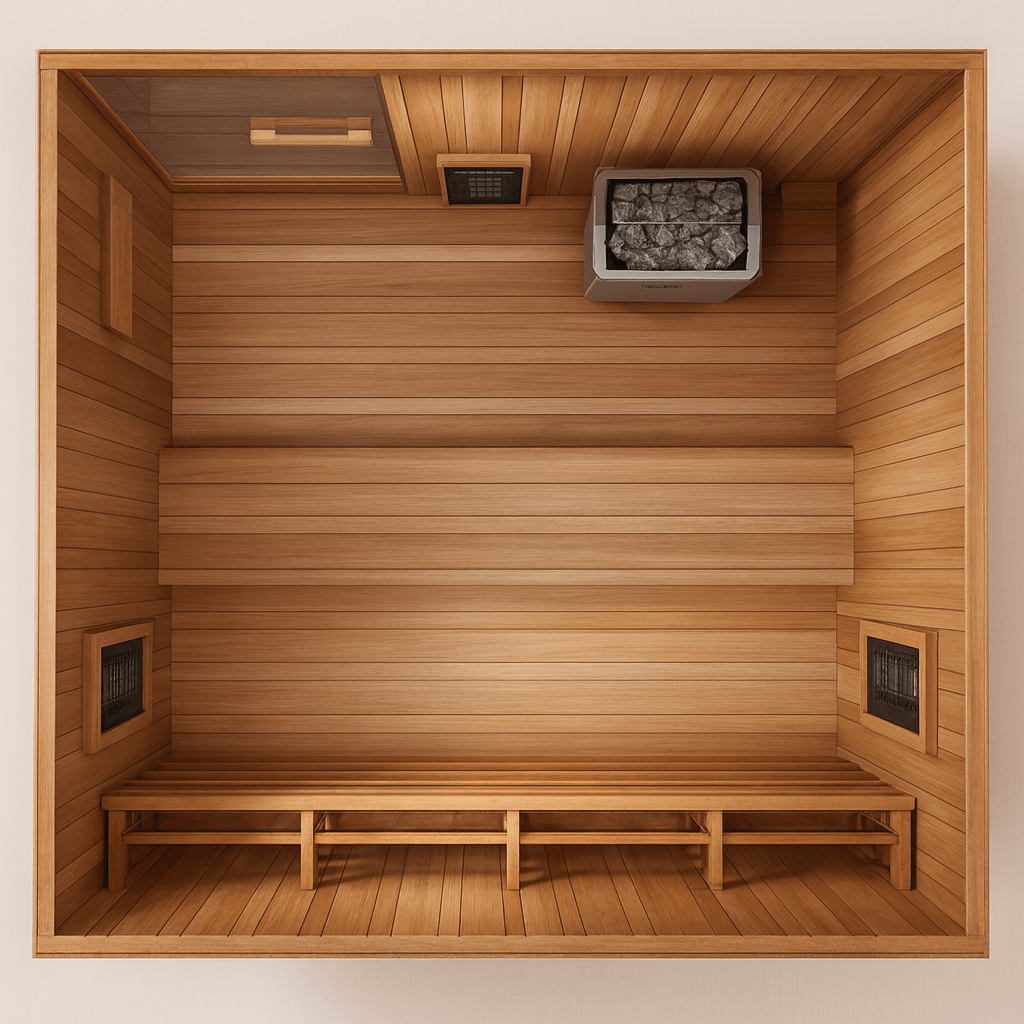

- Two-tier bench system: Large upper and lower benches sized for the FD-5 cabin.
- Tempered glass: 8 mm glass door.
- Low EMF documentation: Finnmark identifies the infrared system as low EMF and provides an EMF test log.
Who Is the Finnmark FD-5 Best For?
- Households wanting a four-person sauna: The FD-5 is the larger Finnmark Trinity XL combination model.
- Buyers comparing heat styles: It combines infrared heaters with a traditional stone heater.
- Dedicated wellness rooms: Its size and electrical requirements suit a planned indoor sauna space.
- Buyers who want integrated lighting and audio: Near-infrared ceiling lights, red light, chromotherapy, touchscreen controls, and Bluetooth audio are included.
Compare Finnmark sauna models
Compare the FD-5 with the compact Trinity model or a larger infrared-only cabin before choosing your sauna.
Finnmark FD-5 Specifications and Dimensions
| Specification | Detail |
|---|---|
| Model | Finnmark FD-5 Trinity XL |
| SKU | TRINITY-4X6 |
| UPC | 810127972117 |
| Capacity | 4 people |
| Exterior Dimensions | 74.8"W × 63.8"D × 83.1"H |
| Interior Dimensions | 70.5"W × 60.1"D × 75.2"H |
| Room Volume | 130 cu. ft. |
| Door Dimensions | 23.63"W × 68.75"H |
| Upper Bench Dimensions | 70.5"W × 20.1"D |
| Lower Bench Dimensions | 70.5"W × 15.7"D |
| Product Weight | 575 lb |
| Shipping Dimensions | 80"W × 40"D × 83"H |
| Shipping Weight | 840 lb |
| Interior Material | Western Canadian Cedar |
| Exterior Material | Thermo-Aspen |
| Infrared System | Spectrum Plus™ infrared heaters, 3,150 watts |
| Infrared Electrical | 240V, 1 phase, 15A; NEMA 6-15P plug and 240V / 15A outlet |
| Traditional Heater | Harvia KIP45B, 4.5 kW, 240V, single phase |
| Harvia Heater Current | 18.8A |
| Harvia Heater Room Rating | 100-210 adjusted cu. ft. |
| Maximum Temperature | Infrared: approximately 170°F; traditional: approximately 190°F |
| Red Light | 192 LEDs at 650 nm, with chromotherapy |
| Glass | 8 mm |
| Warranty | Limited manufacturer warranty; see current warranty document for terms |
Confirm room measurements, electrical requirements, and delivery details against the current product documents before final site preparation.
FD-5 Electrical Requirements
| System | Planning Requirement |
|---|---|
| Infrared System | 240V, 3,150 watts, 1 phase, 15A, with a NEMA 6-15P plug and 240V / 15A outlet. Use a dedicated circuit as directed by the manufacturer. |
| Traditional Heater | The Harvia KIP45B is rated at 4.5 kW, 240V, single phase, with 18.8A operating current. Finnmark specification materials may list a 20A supply rating. Have a licensed electrician confirm the actual heater, circuit, breaker, conductors, disconnects, and local requirements from the current manuals. |
| Before Installation | Verify panel capacity, circuit locations, wire routing, cord reach, clearances, and local code with a licensed electrician. |
Plan for separate electrical supplies for the infrared and traditional systems. The touchscreen operates the infrared system and cabin functions; the Harvia heater uses its own built-in controls. Do not use an extension cord or power strip.
What Is Included with the FD-5?
- Bottom, top, back, front, left, and right cabin panels
- Glass door, bench support, and bench top
- Heater cable, floor cable, power supply unit, and power cable
- Interior heater connections with wood cover
- Door handle and screws
- Infrared sauna heater panels
- Harvia KIP Series B 4.5 kW sauna heater
- One box of Harvia AC3000 0-10 cm sauna stones, listed as 44 lb in the included package
- Spectrum LED near-infrared ceiling lights with Spectrum Red Light™ Therapy and chromotherapy
- Controller 2.0 LCD Wi-Fi touchscreen with Bluetooth audio
- 6-inch Hi-Fi speakers
- Screws and limited warranty documentation
FD-5 Trinity XL vs. Other Finnmark Saunas
| Feature | FD-5 Trinity XL | FD-4 Trinity | FD-3 Infrared |
|---|---|---|---|
| Typical Capacity | 4 people | 2 people | 3-4 people |
| Heating | Infrared + traditional + red light | Infrared + traditional + red light | Infrared + integrated lighting |
| Traditional Heater | Harvia KIP45B, 4.5 kW | Harvia Vega Compact, 1.9 kW | None |
| Approximate Footprint | 74.8" × 63.8" | 48" × 48" | 70.9" × 45.3" |
| Explore Model | Current page | View FD-4 Trinity | View FD-3 |
Site Preparation and Assembly
- Surface: Install on a solid, level, dry indoor surface capable of supporting the sauna and occupants.
- Access: Measure exterior doors, hallways, corners, stairs, and the final room before ordering.
- Electrical: Complete or confirm the electrical plan before the sauna arrives.
- Assembly: Follow the current Finnmark manual. At least two physically capable people are required. Arrange assembly and electrical work separately from standard curbside freight delivery.
- Clearance: Follow the clearances in the current Finnmark and Harvia manuals. The sauna is freestanding and should not be built into a structure.
Shipping and Curbside Delivery
- Freight delivery on a wooden pallet
- Delivery is scheduled by appointment
- The carrier lowers the shipment to ground level at curbside
- Delivery does not include moving the sauna inside the home
- Inspect the shipment before signing and document visible damage
Shipping terms, dispatch timing, and delivery exceptions depend on the order destination and current freight arrangements. Contact us before purchase if your access or delivery needs require special coordination.
Using Infrared, Traditional Heat, and Red Light
The FD-5 combines Spectrum Plus infrared heating, traditional heat from a stone-filled Harvia heater, and integrated red light with chromotherapy. Use each system according to the current Finnmark and Harvia instructions.
No permanent plumbing connection is required. For steam during traditional sauna use, add water only to the heated sauna stones as directed by Harvia. Keep water away from infrared heaters, lighting, and electrical components.
Care and Maintenance
- Use clean towels on the benches and clean the interior using manufacturer-approved methods.
- Allow the cabin to dry and air out after use.
- Let the traditional heater and stones cool fully before inspection or maintenance.
- Maintain the stone space according to Harvia instructions and use suitable sauna stones.
- Follow both manuals for electrical inspections, cleaning, troubleshooting, and service.
Authorized Finnmark Dealer Support
My Luxury Home Spa is a veteran-owned, authorized Finnmark Designs retailer. We can help compare models, review installation documents, plan freight access, and identify questions to discuss with your electrician or installer before purchase.
The cabin, infrared components, and Harvia heater may have different warranty terms. Review the current Finnmark warranty and separate Harvia documentation before purchase. Contact us for help locating the terms applicable to your order.
Plan a Complete Home Wellness Space
Finnmark FD-5 Trinity XL FAQs
How many people fit in the Finnmark FD-5?
What is the difference between the FD-4 and FD-5?
What heating systems does the FD-5 include?
How hot does the FD-5 get?
How many sauna stones are included with the FD-5?
Does the FD-5 require plumbing?
What electrical service does the FD-5 require?
Can the infrared and traditional heaters run together?
Does the FD-5 include red light?
What wood is used in the FD-5?
Is the FD-5 low EMF?
How is the FD-5 delivered?
What are the FD-5 dimensions?
