EOS Emergency Sauna Heater Shutoff Button
- Free USA Shipping On Many Items
- Full Warranty
- Secure Checkout
- Authorized Dealer
Provide Immediate Access to Sauna Heater Shutdown
The EOS Emergency Shutoff is a clearly marked, wall-mounted safety button designed to stop a compatible sauna heater immediately through the system's overheating safety circuit.
A single press activates the shutoff without requiring users to navigate the sauna control panel. Two separate switching circuits also allow the button to support an additional compatible action, such as activating third-party signaling equipment.
Dedicated Emergency Control for Compatible Sauna Systems
The EOS Emergency Shutoff provides a dedicated physical control for quickly stopping the sauna heater when immediate action is needed. Its bright red push button is easy to recognize in a sauna or adjacent control area.
When installed correctly, the control interfaces with the sauna system's overheating safety circuit. It does not replace the temperature-limiting, control or electrical protection devices required by the heater manufacturer or applicable codes.
- Brand
- EOS
- Model
- EMERGENCY SHUTOFF
- Base SKU
- 14-945779
- Product type
- Emergency sauna heater shutoff button
- Connection
- Two contact pairs with crimped wires
- Isolation voltage
- 250V
- Protection
- IP65 visible portion up to mounting point
- Warranty
- 2-year limited warranty
Fast, Clearly Identified Emergency Operation
The EOS Emergency Shutoff is designed to provide a direct and recognizable means of interrupting compatible sauna heater operation.
Single-Press Shutoff
Pressing the clearly marked red button activates the connected overheating safety circuit for immediate heater shutdown.
Two Switching Circuits
Two separate contact circuits can support heater shutdown and an additional compatible action, such as external signaling equipment.
High-Visibility Control
The red mushroom-style button is designed for quick recognition in steamy, dimly lit or time-sensitive conditions.
Protected Visible Portion
The visible portion of the installed control is rated IP65 up to the mounting point.
Defined Reset Procedure
Following accidental activation, the button may be returned to its standby position according to the EOS operating instructions.
Optional Face Plate Kit
An upgraded configuration adds a wood face plate and mounting components for a more finished installation.
Choose the Shutoff Button Alone or the Face Plate Kit
Select the configuration that matches the planned installation. Product contents and supplier SKUs differ between the two options.

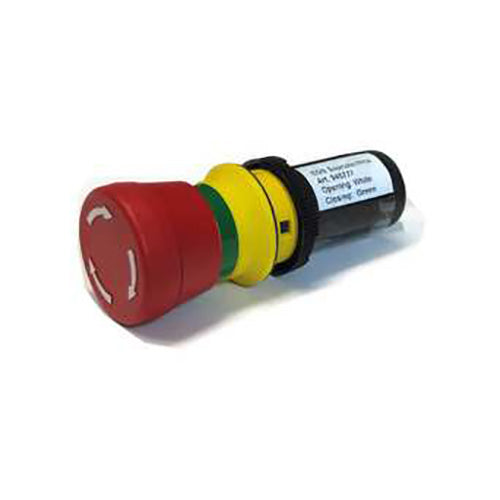

Emergency Shutoff Only
- EOS emergency shutoff button
- Luster terminal block
- Base supplier SKU 14-945779
- Face plate and mounting kit not included

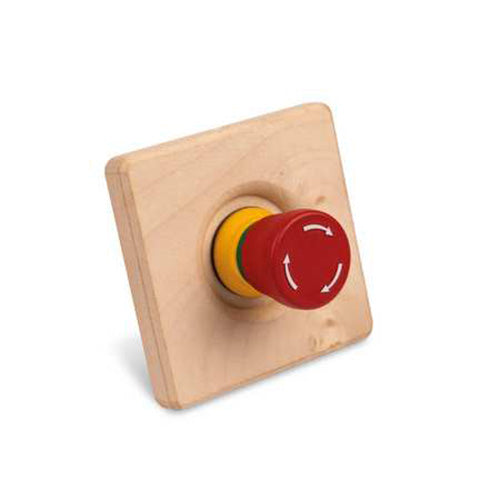

With Face Plate Kit
- EOS emergency shutoff control
- Wooden face plate
- Mounting frame
- Hollow-wall box
- Required mounting screws
- Complete-kit supplier SKU 14-945777
Variant setup: Confirm current supplier availability, wood finish and package contents before publishing inventory for the face plate configuration.
Compatibility Must Be Confirmed Before Installation
The emergency button must be connected to a sauna heater or control system that supports the specified overheating safety-circuit connection. Compatibility cannot be determined from heater wattage, voltage or brand appearance alone.
Verify These Details
- Exact sauna heater model
- Exact sauna control model
- Relay or power-box model
- Emergency-input or safety-circuit requirements
- Contact configuration
- Permitted mounting location
Installation Documentation
- EOS emergency button instructions
- Sauna heater installation manual
- Control-system wiring diagram
- Applicable electrical requirements
- Commercial or public-facility requirements
Do not assume universal compatibility: Have the complete heater and control-system information reviewed before ordering or installing this safety accessory.
How the Emergency Shutoff Operates
Pressing the button activates the connected safety circuit and stops heater operation. The second switching circuit may be used for another compatible function when included in the engineered installation.
Emergency Activation
- Press the red button firmly
- Confirm that heater operation stops
- Follow the facility's emergency procedures
- Do not restart the sauna until conditions are safe
Reset and Restart
Bathing Brands states that after accidental activation, rotating the button clockwise to its standby position within five minutes can allow heater operation to resume. After that period, a manual system restart is required.
The reset process must never be used to bypass investigation of an actual emergency, overheating event, electrical problem or unsafe sauna condition.
EOS Emergency Shutoff Specifications
| Manufacturer | EOS |
|---|---|
| Model | EMERGENCY SHUTOFF |
| Base SKU | 14-945779 |
| Complete face plate kit SKU | 14-945777 |
| UPC | 652592097595 |
| Product type | Emergency sauna heater shutoff button |
| Connection | Two contact pairs with crimped wires |
| Isolation voltage | 250V AC/DC |
| Maximum AC current | 5A |
| Maximum DC current | 2.5A |
| Maximum ambient temperature | 158°F (70°C) |
| Protection rating | IP65 for the visible part up to the mounting point |
| Installation depth | Approximately 3.3 inches (8.5 cm) |
| Published cover plate dimensions | Approximately 2.8 inches wide x 2.8 inches high x 0.5 inches deep (7 x 7 x 1.2 cm) |
| Warranty | 2-year limited consumer and 2-year limited commercial warranty |
Cover plate dimensions apply only to the applicable upgraded configuration. The base shutoff button does not include the decorative face plate or complete mounting kit.
What Is Included?
Emergency Shutoff Only
- EOS emergency shutoff button
- Luster terminal block
- Manufacturer warranty coverage
Face Plate Kit Configuration
- Emergency shutoff control
- Wooden plate
- Mounting frame
- Hollow-wall box
- Two 3 x 20 mm screws
- Two 2.9 x 9.5 mm screws
Sauna heater, external alarm equipment, control system, relay box, field wiring, electrical protection devices and installation labor are not included.
Confirm the Complete Sauna Safety System
The emergency shutoff must be selected as part of a compatible, properly engineered and code-compliant sauna installation.
Identify the Equipment
Record the sauna heater, control, relay box and power-distribution equipment model numbers.
Review the Wiring Requirements
Confirm the safety-circuit connection, contact requirements and permitted accessory configuration.
Confirm Placement and Code Requirements
Determine the required button location and whether local or commercial-facility rules impose additional requirements.
Installation Requires Qualified Electrical Expertise
The emergency button must be installed according to EOS instructions, the sauna heater and control-system documentation, applicable electrical codes and any commercial-facility safety requirements.
- Disconnect and secure all electrical power before installation
- Confirm the correct overheating safety-circuit terminals
- Use approved wiring and connection methods
- Observe the maximum electrical ratings
- Maintain the required mounting depth and enclosure protection
- Position the button where it is visible and accessible
- Test heater shutdown before placing the sauna into service
- Test any connected signaling equipment separately
- Document the completed installation and operating procedure
Electrical safety warning: This is not a plug-and-play accessory. Improper connection can prevent the emergency function from operating correctly or create electrical and fire hazards. Installation and testing should be completed by qualified professionals.
Test the Emergency Function Before Sauna Use
The installer or facility operator should establish inspection and testing procedures based on EOS instructions, applicable codes and the requirements of the complete sauna system.
Functional Checks
- Confirm the button is visible and unobstructed
- Press the button and verify heater shutdown
- Verify operation of any connected alarm
- Confirm the reset process
- Record testing when required
Physical Inspection
- Inspect the button and housing for damage
- Confirm the mounting remains secure
- Check that labels remain visible
- Inspect accessible wiring according to code
- Remove the sauna from service if operation is uncertain
Two-Year Limited Warranty Coverage
The EOS Emergency Shutoff is listed with a 2-year limited warranty for consumer use and a 2-year limited warranty for commercial use. Coverage, exclusions, eligibility and claim procedures remain subject to the manufacturer's current written warranty terms.
Why Buy EOS Sauna Safety Equipment from My Luxury Home Spa?
Compatibility Assistance
Send us the heater and control-system model information when you need help comparing your equipment with this product listing.
Clear Configuration Details
Compare the base shutoff and face plate kit configurations, electrical ratings, package contents and installation requirements.
Residential and Commercial Support
My Luxury Home Spa serves homeowners, builders, designers, wellness businesses and commercial sauna operators.
EOS Emergency Sauna Shutoff FAQ
What does the EOS Emergency Shutoff do?
It provides a dedicated button for stopping a compatible sauna heater through the overheating safety circuit.
What is the SKU for the shutoff button?
The emergency shutoff button without the face plate kit is EOS part 14-945779.
What is included with the face plate configuration?
The upgraded configuration includes the shutoff control, a wooden plate, mounting frame, hollow-wall box and mounting screws.
Can the button activate an external alarm?
The control has two separate switching circuits. One may support compatible third-party signaling equipment when included in the engineered installation.
What are the electrical ratings?
Published ratings include 250V isolation voltage, a maximum of 5A AC and a maximum of 2.5A DC.
What is the maximum ambient temperature?
The published maximum ambient temperature is 158°F or 70°C.
Is the EOS Emergency Shutoff waterproof?
The visible portion up to the mounting point has an IP65 protection rating. This does not mean every part of the installation may be exposed to water.
Does it work with every sauna heater?
No. Compatibility depends on the sauna heater, control system, power box and overheating safety-circuit configuration.
Who should install the emergency shutoff?
Installation and functional testing should be completed by qualified professionals familiar with sauna controls and applicable electrical requirements.
How is the button reset after activation?
Bathing Brands states that after accidental operation, rotating the button clockwise to standby within five minutes can resume heater operation. After that period, a manual restart is required.
What warranty is included?
The product carries a 2-year limited consumer warranty and a 2-year limited commercial warranty, subject to the manufacturer's current terms.
Verify the Heater and Control-System Connection
Send us the model numbers for your sauna heater, control panel, relay box or power unit. We will help you compare that information with the EOS Emergency Shutoff listing.
