EOS EmoTec D Digital Sauna Control
- Free USA Shipping On Many Items
- Full Warranty
- Secure Checkout
- Authorized Dealer
Intuitive Control for Residential and Commercial Sauna Systems
The EOS EmoTec D combines an easy-to-read 3.5-inch color display, tactile jog-dial navigation, programmable operating functions, and expandable system support in a compact control panel designed for traditional dry saunas.
Adjust the sauna temperature, manage cabin lighting and ventilation, save individual operating profiles, schedule a future start, and access advanced system settings from a contemporary interface designed for both home and commercial sauna environments.
Choose Black with Anthracite Trim or Silver with White Trim to coordinate the control panel with the surrounding sauna interior.
Sophisticated Sauna Operation in a Compact Control Panel
The EOS EmoTec D is a digital control unit for traditional dry sauna operation. Its high-contrast TFT display presents sauna functions through a clear graphical interface, while the central jog dial and two-button layout make navigation straightforward.
The control supports temperature settings from 85°F to 194°F, programmable start times, four individual user profiles, lighting control, adjustable fan operation, operating locks, screen settings, service functions, and supported system extensions.
The slim control panel may be installed on the wall or recessed into the wall. A standard 16.4-foot display cable allows the panel to be positioned separately from the required EOS Power Box, with longer optional cables available for larger projects.
- Brand
- EOS
- Model
- EmoTec D
- Product type
- Digital dry sauna control
- Display
- 3.5-inch TFT color display
- Navigation
- Jog dial with two buttons
- Temperature range
- 85°F to 194°F
- User profiles
- Four
- Installation
- Surface-mounted or flush-mounted
- Available finishes
- Black or Silver
- Power Box
- Required and sold separately
- Warranty
- Two years
Advanced Sauna Control Without an Overcomplicated Interface
The EmoTec D combines essential day-to-day sauna controls with programmable features and professional system-management options.
Color Display
The high-contrast TFT screen presents operating functions, temperatures, schedules, settings, and system information through a clear graphical interface.
Simple Navigation
Navigate menus and adjust settings with a central jog dial and two control buttons rather than a crowded bank of switches.
Traditional Sauna Operation
Designed for dry Finnish-style sauna systems. The EmoTec D does not provide the humidity and vaporizer functions associated with the separate EmoTec H model.
Broad Temperature Range
Set the sauna temperature from 85°F to 194°F for a range of traditional sauna preferences and operating environments.
Individual User Profiles
Save up to four operating profiles to simplify access to preferred sauna settings for different users or operating routines.
Preset Start Time
Program a future sauna start up to 24 hours in advance when the installation and operating conditions permit scheduled operation.
Cabin Light Control
Operate compatible cabin lighting through the control system, including supported dimming functions when paired with the proper lighting equipment.
Adjustable Ventilation
Manage a compatible ventilation fan through the sauna control to support cabin airflow and post-use ventilation routines.
Operational Lock
Restrict unauthorized setting changes with the supported control lock and access-protection functions.
Two Mounting Options
Install the slim panel on the wall or recess it for a more integrated appearance within the approved indoor installation area.
System Extension Support
Supports compatible EOS extensions, including remote connectivity, safety accessories, and power expansion for larger sauna systems.
On-Site Firmware Updates
Firmware may be updated on site by qualified service personnel as supported by the EOS system and service procedures.
Select a Finish for Your Sauna Interior
Both finish options provide the same EmoTec D operating functions. Choose the appearance that best coordinates with the sauna wall, hardware, heater, and surrounding design.

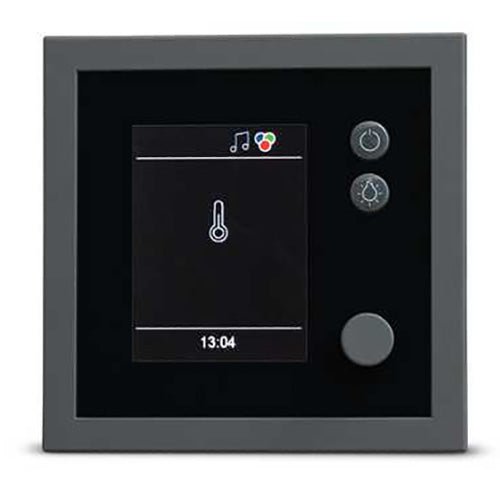

Black with Anthracite Trim
A dark two-tone finish suited to contemporary sauna interiors, dark hardware packages, and modern commercial wellness spaces.

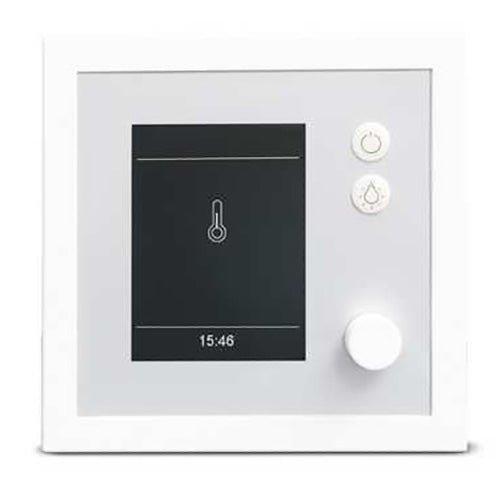

Silver with White Trim
A lighter two-tone finish that pairs well with pale sauna woods, bright interiors, and clean architectural environments.
The EmoTec D Requires a Compatible EOS Power Box
The EOS EmoTec D is the user interface for your sauna control system. It does not contain the heater switching components needed to operate a sauna heater by itself. A compatible EOS Power Box is required for every installation.
Required Components
- EOS EmoTec D control panel
- Compatible EOS Power Box
- Compatible sauna heater
- Temperature sensor
- Qualified electrical installation
- Proper branch circuit protection
Optional Accessories
- EOS App Module
- Power Extension Box
- EOSafe Remote Start Safety System
- Emergency Shutoff
- Extended display cables
- Additional lighting modules
Designed for Everyday Sauna Operation
The EmoTec D combines the essential controls used during every sauna session with advanced programming functions for residential and commercial installations.
Temperature Control
Easily adjust sauna temperature from 85°F to 194°F using the central control dial.
Preset Start
Program sauna operation up to 24 hours in advance for supported installations.
User Profiles
Save four personalized operating profiles for quick access to preferred settings.
Lighting Control
Operate compatible sauna lighting directly from the control panel.
Ventilation Fan
Control a compatible ventilation fan to improve comfort and cabin airflow.
Service Functions
Includes maintenance reminders, operating lock, firmware support, and additional configuration settings.
Designed Specifically for Traditional Dry Saunas
The EmoTec D controls traditional Finnish dry sauna heaters. It is not intended to operate sauna vaporizer functions or Bi-O humidity systems.
Compatible
- Traditional dry sauna heaters
- Residential sauna systems
- Commercial sauna rooms
- Compatible EOS Power Boxes
- EOS App Module
- EOS Power Extension Box
Not Intended For
- Steam showers
- Steam generators
- Infrared saunas
- Standalone heater control
- Bi-O humidity operation
What's Included
The Bathing Brands control package includes the control components needed to install the EmoTec D interface. The required Power Box is sold separately.
Included
- EOS EmoTec D control panel
- Surface mounting enclosure
- Flush mounting enclosure
- Temperature sensor
- Sensor cable
- 16.4 ft display cable
- Mounting hardware
- Installation documentation
Sold Separately
- EOS Power Box
- Sauna heater
- Electrical wiring
- Branch circuit protection
- EOS App Module
- Power Extension Box
- EOSafe safety system
Grow Beyond Basic Sauna Control
The EmoTec D can be expanded with additional EOS accessories to add remote operation, larger multi-heater support, and enhanced safety.
Remote Connectivity
Add smartphone operation through the compatible EOS App Module.
EOS App ModuleLarge Multi-Heater Systems
Commercial installations can be expanded using the EOS Power Extension Box when additional relay capacity is required.
EOS Power Extension BoxUnderstanding the EOS Control System
| Component | Purpose |
|---|---|
| EmoTec D | User interface and sauna operation. |
| Power Box | Main heater switching electronics. |
| App Module | Adds smartphone connectivity. |
| Power Extension Box | Adds relay capacity for multi-heater systems. |
| EOSafe | Provides remote-start safety verification. |
Professional Installation Required
The EmoTec D is part of a professional sauna control system. The control panel, Power Box, heater, sensors, and electrical connections must be installed and commissioned by a qualified installer in accordance with the EOS installation manual and all applicable electrical codes.
EOS EmoTec D Technical Specifications
The final electrical capacity and Power Box configuration must be selected according to the sauna heater, voltage, phase, connected load, and complete system design.
| Manufacturer | EOS Saunatechnik GmbH |
|---|---|
| Model | EmoTec D |
| Supplier SKU | 14-948198 |
| Product type | Digital control unit for traditional dry saunas |
| Display | 3.5-inch TFT color display |
| Operation | Jog dial with two control buttons |
| Temperature range | 85°F to 194°F |
| Temperature sensor | Digital temperature sensor system with safety temperature limiter |
| Heating-time limitation | 1 hour for U.S. installations |
| Preset start | Up to 24 hours in advance |
| User profiles | Four |
| Control-panel dimensions | 5 × 5.1 × 1 inches |
| Control-panel mounting | Surface-mounted or flush-mounted |
| Standard display cable | 16.4 feet |
| Maximum control-panel distance | Up to 328 feet from the Power Box with the appropriate optional display cable |
| Cabin-light output | Minimum 5W, maximum 100W |
| Fan output | Minimum 5W, maximum 150W |
| Supported switching configurations | Depends on the separately selected EOS Power Box and complete electrical configuration |
| Supported system capacities | 9 kW at 208V three-phase, 9 kW at 240V, or 15 kW at 208V three-phase with the appropriate Power Box |
| Remote-control support | Available with compatible separately purchased EOS equipment and required safety provisions |
| Installation environment | Indoor use only |
| Country of manufacture | Germany |
| Warranty | Two years |
Power Box dimensions and electrical ratings vary. Do not order a Power Box based only on the control-panel model. Confirm the heater output, voltage, phase, circuit design, and required switching capacity first.
Match the Control to the Correct Electrical Configuration
The EmoTec D communicates with a separately purchased EOS Power Box. The Power Box contains the primary switching equipment that supplies and controls power to the sauna heater.
| System Capacity | Electrical Configuration | Selection Notes |
|---|---|---|
| Up to 9 kW | 208V three-phase | Requires the compatible 208V three-phase EOS Power Box and an approved heater configuration. |
| Up to 9 kW | 240V | Requires the compatible 240V EOS Power Box and an approved heater configuration. |
| Up to 15 kW | 208V three-phase | Requires the compatible higher-capacity EOS Power Box and electrical service. |
| Expanded systems | Project-specific | Larger or multi-heater installations may require a compatible EOS Power Extension Box and additional relay capacity. |
Do not assume that the heater's listed kilowatt rating is the only selection factor. Voltage, phase, heater configuration, total connected load, branch circuits, control accessories, and applicable electrical codes must also be confirmed.
Functions Available Through the EmoTec D
Available functions may depend on the connected equipment, installer configuration, operating mode, and accessories included in the complete sauna system.
| Function | What It Does |
|---|---|
| Sauna temperature | Sets the target temperature within the supported operating range. |
| Preset start | Schedules a future start up to 24 hours in advance when permitted by the installed safety configuration. |
| User profiles | Stores up to four preferred operating configurations. |
| Cabin lighting | Switches and adjusts compatible connected sauna lighting. |
| Ventilation fan | Operates a compatible connected fan and supported adjustable fan functions. |
| Operational lock | Restricts unauthorized changes to sauna settings. |
| Vacation home mode | Provides restricted operating access for supported shared-use or rental-property applications. |
| Display settings | Provides access to language, date, time, brightness, screen saver, and standby settings. |
| Operating data | Displays supported system information and operating records. |
| Service settings | Provides qualified installers with system configuration, maintenance, fan, switching, and reset functions. |
| Firmware updates | Supports on-site firmware updates by qualified service personnel. |
| Remote operation | Supports compatible EOS remote-control equipment when all required accessories and safety measures are installed. |
Remote Operation Requires Additional Equipment
The EmoTec D can support remote-control functions, but the control panel alone does not provide smartphone connectivity or automatically satisfy remote-start safety requirements.
Connectivity Equipment
A compatible EOS App Module is required to add supported smartphone or network connectivity.
View the EOS App ModuleSafety Equipment
Remote activation may require approved safety equipment that verifies the sauna is ready for operation and that no objects have been placed on or near the heater.
Always inspect the sauna cabin and heater before operation. Never use remote-start functions unless the complete installation meets the EOS instructions, heater requirements, and applicable safety regulations.
Control-Panel and Extension Cable Options
The standard package includes a 16.4-foot control-panel cable. Longer optional cables allow the display and compatible extension modules to be positioned farther from the Power Box when the installation design requires it.
| Accessory | Length | EOS Item Number |
|---|---|---|
| Display cable with temperature sensor | 65.6 feet | 94 6281 |
| Display cable | 32.8 feet | 94 6802 |
| Display cable | 82 feet | 94 6285 |
| Extension-module cable | 32.8 feet | 94 5861 |
| Extension-module cable | 82 feet | 94 4647 |
Cable routing, separation from power wiring, mounting location, and maximum supported distance must be reviewed before walls and finish materials are completed.
EOS EmoTec D Manuals and Technical Information
Review both documents with the sauna designer, equipment supplier, and electrician before purchasing or installing the control system.
EOS EmoTec D Data Sheet
Review the control functions, operating range, dimensions, supported Power Box configurations, sensor arrangement, and optional cable information.
Instructions and Operation Manual
Includes safety requirements, mounting instructions, electrical diagrams, commissioning procedures, service settings, control functions, troubleshooting information, and operating guidance.
Plan the Complete Control System Before Installation
The control, Power Box, heater, sensors, lighting, fan, safety equipment, and field wiring must be coordinated as one complete sauna system.
Confirm the Sauna Design
Determine the sauna room dimensions, heater model, required heating capacity, installation clearances, sensor placement, and intended residential or commercial use.
Confirm the Electrical Design
Verify voltage, phase, heater load, Power Box capacity, branch circuits, disconnects, conductor sizing, and applicable electrical requirements.
Install and Commission
A qualified professional must install the equipment, make all electrical connections, configure the system, test safety functions, and instruct the operator.
Protect the Control and Power Equipment
Control Panel
- Install indoors in an approved location
- Use the supplied surface or flush-mount housing
- Protect the panel from moisture and condensation
- Avoid excessive heat and direct sunlight
- Maintain access for operation and servicing
Power Box
- Install indoors in a ventilated location
- Do not enclose it inside an unventilated cabinet
- Protect it from corrosive or saline environments
- Maintain required service access
- Follow all EOS mounting-clearance instructions
The EmoTec D control equipment is not designed for outdoor installation. Exposure to rain, condensation, excessive humidity, extreme cold, corrosive air, or direct weather can damage the system.
Information Needed to Confirm Compatibility
Gather the following information before purchasing the EmoTec D and its related control-system components.
Sauna and Heater
- Sauna room dimensions
- Residential or commercial use
- Exact heater manufacturer and model
- Heater output in kilowatts
- Single-heater or multi-heater system
Electrical Service
- 208V or 240V service
- Single-phase or three-phase service
- Total connected heater load
- Available branch circuits
- Power Box and relay requirements
Control Features
- Local control only or remote access
- Cabin-light requirements
- Ventilation-fan requirements
- Required safety equipment
- Control-panel mounting location
Specialized Support for Your EOS Sauna System
A premium sauna control is only one part of a properly matched system. My Luxury Home Spa helps customers identify the details that should be confirmed before ordering the control, Power Box, heater, expansion equipment, and accessories.
Preorder Guidance
Receive help identifying the heater, electrical, Power Box, and accessory information needed to verify the proposed system.
Compatible Equipment
Shop related EOS controls, expansion equipment, connectivity accessories, sauna heaters, and system components through one specialty retailer.
Veteran-Owned Business
My Luxury Home Spa is a veteran-owned business serving residential, commercial, hospitality, fitness, and professional wellness projects.
Choose Your EOS EmoTec D Finish
Select Black with Anthracite Trim or Silver with White Trim, then confirm the compatible EOS Power Box and other required components before placing your order.
EOS EmoTec D FAQ
Review these common questions before selecting the EmoTec D and the related components for your sauna control system.
What is the EOS EmoTec D?
The EOS EmoTec D is a digital control panel for traditional dry sauna systems. It allows users to manage sauna temperature, operating time, lighting, ventilation, user profiles, and other supported system functions through a 3.5-inch color display and jog-dial interface.
Does the EmoTec D include the EOS Power Box?
No. This Bathing Brands product configuration includes the EmoTec D control equipment, but the compatible EOS Power Box is required and sold separately.
Can the EmoTec D operate a sauna heater by itself?
No. The EmoTec D is the user interface for the sauna system. The separately selected EOS Power Box contains the electrical switching equipment used to operate the sauna heater.
Which colors are available?
The EmoTec D is available in Black with Anthracite Trim and Silver with White Trim. Both versions provide the same control functions.
Is the EmoTec D designed for dry or humid saunas?
The EmoTec D is designed for traditional dry sauna operation. It does not control the vaporizer or humidity functions used in a Bi-O sauna system.
What is the difference between the EmoTec D and EmoTec H?
The EmoTec D is intended for dry sauna operation. The separate EmoTec H model is designed for sauna systems that include humidity or vaporizer functions.
What temperature range does the EmoTec D support?
The EmoTec D supports sauna temperature settings from 85°F to 194°F when used with compatible EOS equipment and an approved sauna heater configuration.
What is the maximum heating time in the United States?
The supported U.S. heating-time limitation is one hour. The system must be configured according to the EOS instructions and applicable safety requirements.
Can I schedule the sauna to start later?
Yes. The EmoTec D supports a preset start time of up to 24 hours in advance when the complete installation and required safety provisions permit scheduled operation.
Does the EmoTec D support user profiles?
Yes. The control can store up to four user profiles, allowing different users or operating routines to access preferred sauna settings more quickly.
Can the EmoTec D control sauna lighting?
Yes. The EmoTec D can control compatible connected sauna lighting. The lighting equipment, wiring, and total connected load must remain within the supported system limits.
Can it control a ventilation fan?
Yes. The EmoTec D can operate a compatible connected ventilation fan. Fan capacity, wiring, and configuration must comply with the EOS instructions.
What size is the EmoTec D control panel?
The control panel measures approximately 5 inches by 5.1 inches by 1 inch.
Can the control panel be flush-mounted?
Yes. The EmoTec D may be surface-mounted or flush-mounted using the appropriate supplied housing and approved installation method.
How long is the included display cable?
The standard display cable is approximately 16.4 feet long. Optional longer cables are available for installations that place the control panel farther from the Power Box.
How far can the control panel be installed from the Power Box?
The control panel may be installed up to approximately 328 feet from the Power Box when the proper compatible optional cable system is used and installed according to EOS requirements.
Which EOS Power Box do I need?
The correct Power Box depends on the heater output, voltage, electrical phase, total connected load, and whether the project uses one heater or multiple heaters. The Power Box should be confirmed before ordering.
Can the EmoTec D control a 9 kW sauna heater?
It can be used with approved 9 kW configurations when paired with the correct EOS Power Box for the available voltage and phase. Heater compatibility and electrical requirements must be confirmed for the specific project.
Can the EmoTec D control a 15 kW sauna heater?
Supported North American configurations may accommodate up to 15 kW at 208V three-phase when the appropriate EOS Power Box, heater, wiring, and electrical service are used.
Can it be used with multiple sauna heaters?
Yes. The EmoTec D can be incorporated into an approved multi-heater EOS system. Larger systems may require a compatible EOS Power Extension Box and additional relay capacity.
View the EOS Power Extension BoxDoes the EmoTec D have built-in Wi-Fi?
No. The EmoTec D does not include built-in Wi-Fi. Supported smartphone and network connectivity requires a separately purchased compatible EOS App Module.
View the EOS App ModuleCan I control the sauna from my phone?
Supported smartphone control may be added with the compatible EOS App Module, network access, and any required remote-start safety equipment.
Is additional safety equipment required for remote start?
Remote or unattended activation may require approved safety equipment that verifies the sauna cabin and heater are ready for operation. The final requirements depend on the control configuration, heater, local regulations, and EOS instructions.
Is the temperature sensor included?
The Bathing Brands control package is described as including the primary temperature sensor components and sensor cable. Additional sensors may be required for certain sauna designs or optional functions.
Is the sauna heater included?
No. The sauna heater is sold separately and must be properly matched to the sauna room, Power Box, electrical service, and control system.
Is electrical wiring included?
No. Field wiring, circuit breakers, disconnects, conduit, conductor sizing, branch circuits, and other electrical installation materials are not included.
Can the EmoTec D be installed outdoors?
No. The control panel and Power Box are intended for approved indoor installation locations protected from rain, condensation, extreme temperatures, and corrosive conditions.
Can the control panel be installed inside the sauna room?
The control must be installed only in a location permitted by the EOS installation instructions. The mounting area must remain within the specified temperature, moisture, and safety limitations.
Can a homeowner install the EmoTec D?
The control system requires professional installation. Electrical connections, Power Box selection, sensor placement, configuration, testing, and commissioning must be completed by qualified professionals in accordance with applicable codes.
Does the EmoTec D work with infrared saunas?
No. The EmoTec D is designed for compatible traditional electric sauna heaters and is not intended as a control for infrared sauna heating systems.
Does it work with a steam generator?
No. The EmoTec D is not a steam generator control and should not be used to operate a steam shower or steam room.
Can the EmoTec D be used in a commercial sauna?
Yes. It may be used in approved residential or commercial sauna systems when the heater, Power Box, operating schedule, safety equipment, and electrical design are appropriate for the application.
Does the EmoTec D include an operating lock?
Yes. The control includes supported access and operating-lock functions that can help restrict unauthorized changes to system settings.
Can the EmoTec D firmware be updated?
Yes. Supported firmware updates may be completed on site by qualified service personnel using the applicable EOS service procedures.
What is the warranty?
The EOS EmoTec D is listed with a two-year limited warranty. Warranty coverage is subject to the manufacturer's terms, approved installation, proper use, and required documentation.
Where can I find the EmoTec D data sheet?
The EOS EmoTec D Data Sheet is available in the Product Documents section of this page.
Where can I find the installation and operation manual?
The EOS EmoTec D Instructions and Operation Manual is available in the Product Documents section of this page.
What information should I provide when requesting system help?
Provide the sauna room dimensions, heater manufacturer and model, heater output, voltage, phase, residential or commercial use, single-heater or multi-heater configuration, lighting and fan requirements, desired remote access, and planned control-panel location.
Why Buy From Us
FAQs
Shipping & Delivery
Free shipping available on select orders. White-glove delivery and setup can be arranged at an additional cost in most areas. We'll confirm your preferred date after purchase.
Warranty
Full manufacturer warranty, registered at purchase. Need help with a claim? Our U.S. support team handles it directly with the brand.
Returns
New, uninstalled items can be returned within the brand's policy window. We'll help coordinate pickup and any restocking requirements.
Installation & Power
Most saunas/hot tubs require dedicated circuits. We provide spec sheets and can recommend licensed installers in your area.
