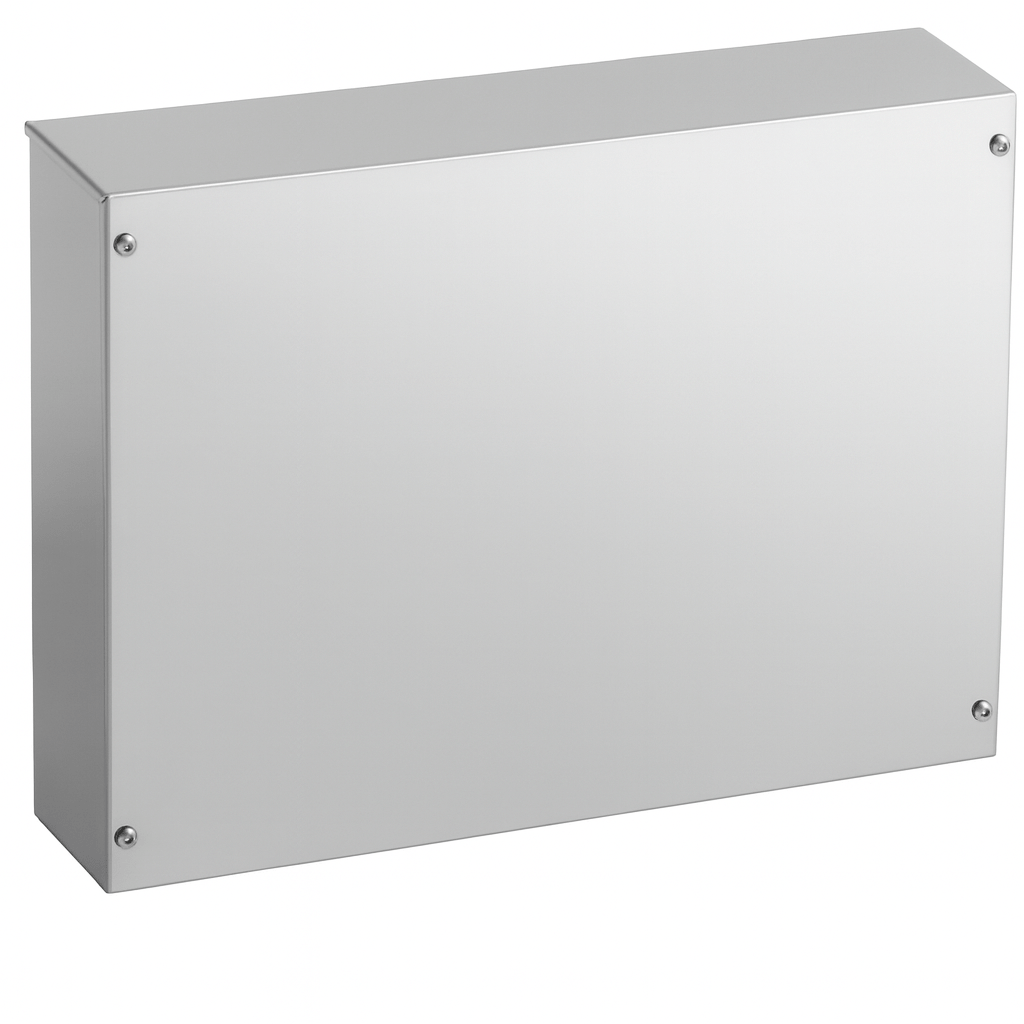

Harvia Xenio LTY45 power unit in sleek stainless steel design for sauna control

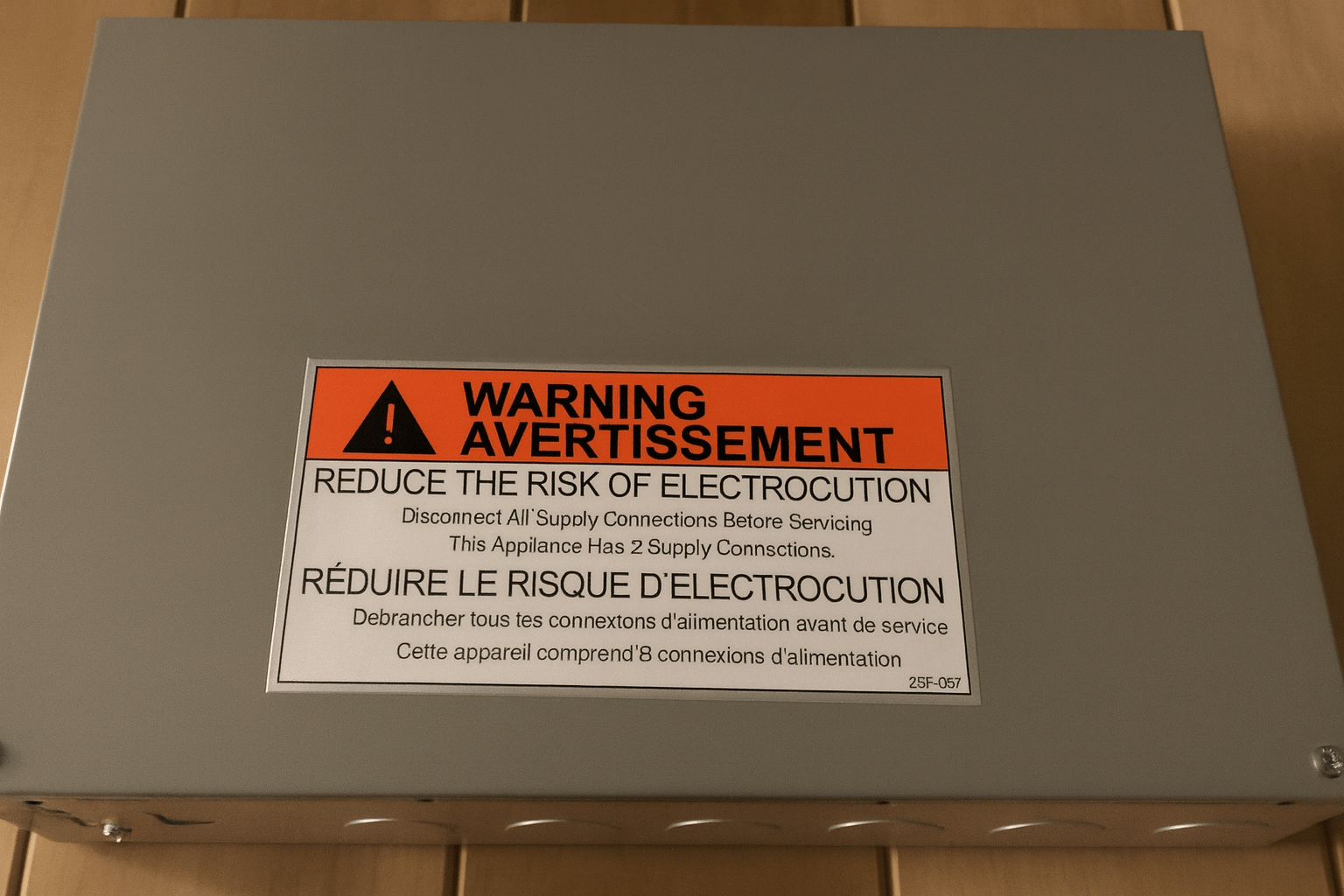

Harvia Xenio LTY45 power unit with warning label for electrical safety precautions

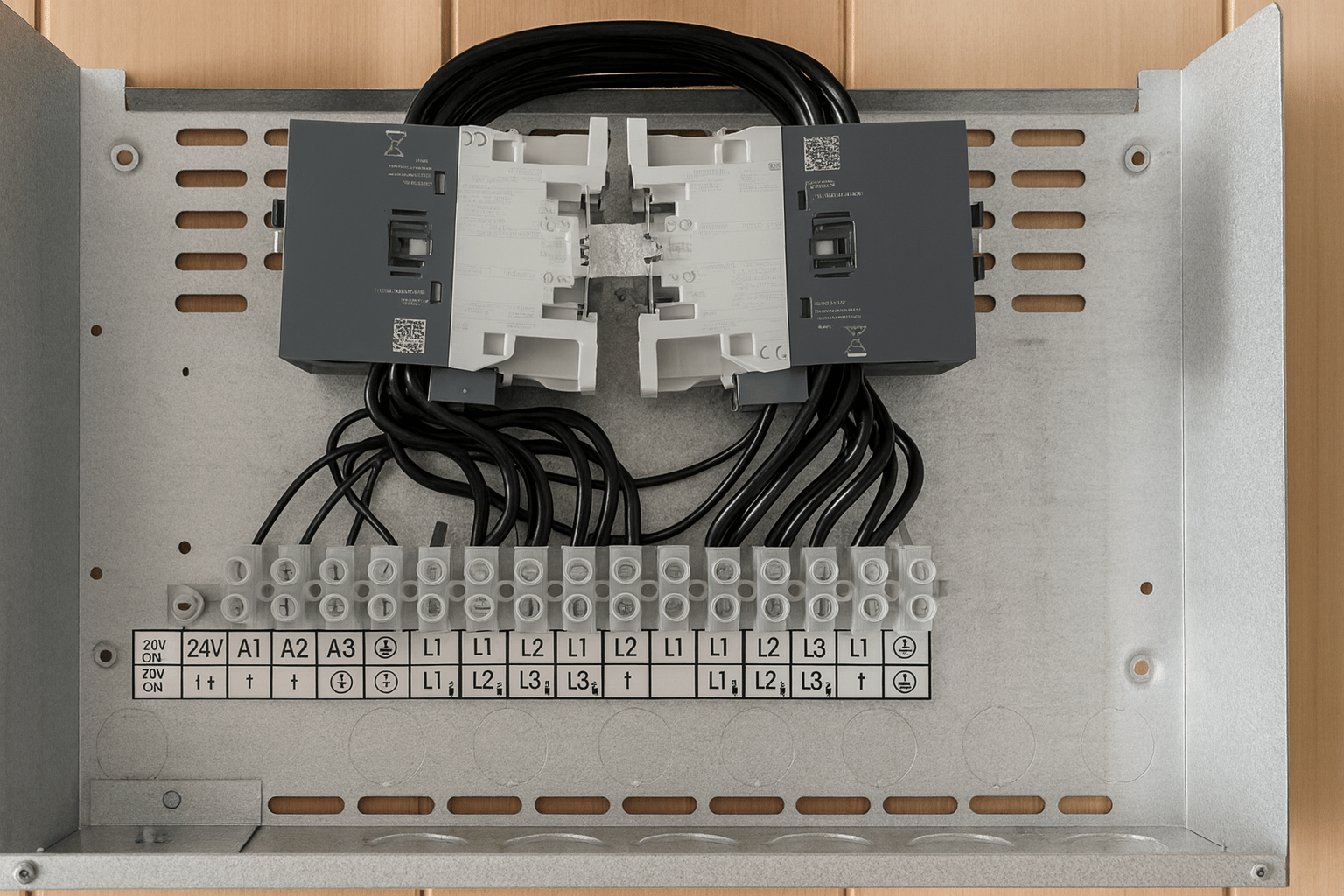

Harvia Xenio LTY45 power unit with wiring connections and circuit breakers for sauna control

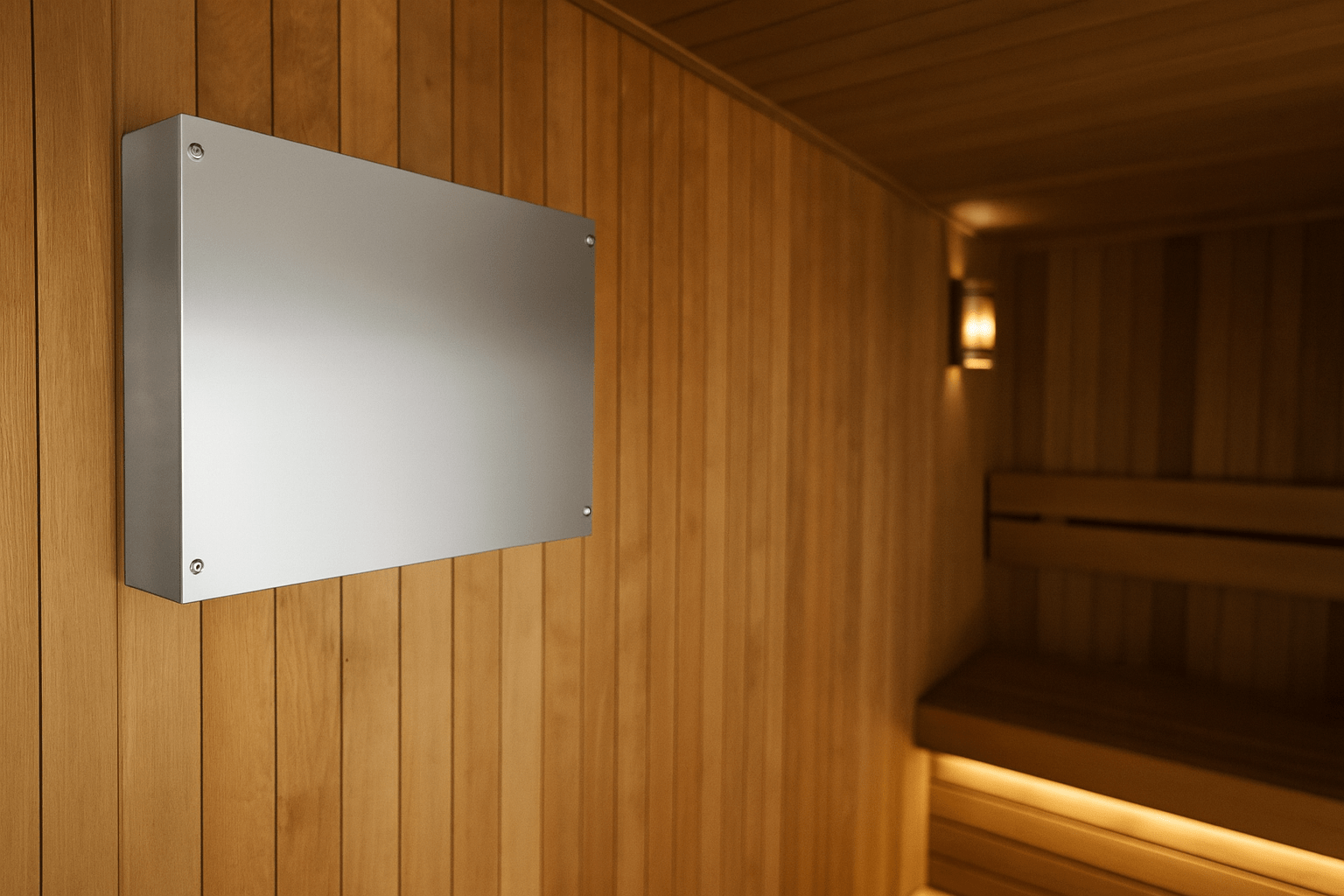

Harvia Xenio LTY45 power unit mounted on sauna wall for efficient temperature control

Harvia Xenio LTY45 Power Unit Sauna Accessory

Regular price$600.00
/

  • Free USA Shipping On Many Items
  • Full Warranty
  • Secure Checkout
  • Authorized Dealer

Harvia | Sauna control accessories

Harvia Xenio LTY45 Power Extension Unit

The Harvia LTY45-U1-U3 adds switching capacity for compatible electric sauna heater systems, including heaters with separate supply groups. It supports installations where the primary control's capacity is insufficient.

Plan the heater, control, and electrical supply together before ordering this expansion accessory.

LTY45-U1-U3 Power extension Separate control required Wall-mounted

Key Features

Additional Switching Capacity

Designed for suitable high-output and multi-group electric heaters.

Coordinated Controls

Works as part of a compatible Harvia system rather than as a standalone controller.

Compact Installation

A wall-mounted enclosure keeps the expansion equipment accessible.

Project Support

Our team can help identify the documentation your installer needs.

What's Included

  • Harvia Xenio LTY45 power extension unit
  • Installation and operation instructions

Heater, primary control system, and installation wiring are sold separately. Review the linked warranty for applicable terms.

Specifications

Harvia Xenio LTY45 / Power Extension
Brand / Model Harvia / LTY45-U1-U3
Type Power / load extension unit
Documented Control Compatibility Xenio CX30-U1-U3 and CX45-U1-U3; verify exact supplied versions
Supply Configurations 240V single-phase or 208V three-phase, 60 Hz; installer to select the specified connection
Maximum System Capacity Up to 38 kW in specified configurations; not the standalone rating of this unit
Dimensions (W × D × H) Approximately 14.3″ × 2.9″ × 10.5″
364 × 73 × 267 mm, per installation manual
Installation Surface-mounted outside the sauna, in a dry location; do not recess
Ingress Protection IPX2, per installation manual
Warranty Harvia limited warranty; see linked terms

Installation Planning

  • Have a licensed electrician confirm the heater's supply groups, circuit ratings, and applicable wiring diagram.
  • Follow the heater, control, and extension-unit manuals together.
  • Use the separate LTY45C documentation for combi heater and steamer expansion.
  • Confirm any other control pairing with Harvia before purchase.

Shipping & Support

  • Delivery: Shipping across the continental U.S.; timing depends on availability and destination.
  • Support: Help reviewing product compatibility and installation documentation.
  • Bundles: Ask about pricing with compatible Harvia heaters and controls.

Why Buy from My Luxury Home Spa?

  • Authorized Harvia dealer with product knowledge
  • Genuine sauna controls and power accessories
  • Secure checkout and responsive customer care

Product Documents & Warranty

Plan Your Harvia Control System

Share your heater model, control model, voltage, and phase for help reviewing the right power-extension accessory.
