Luxury Spas USA | Infinity Elite Series

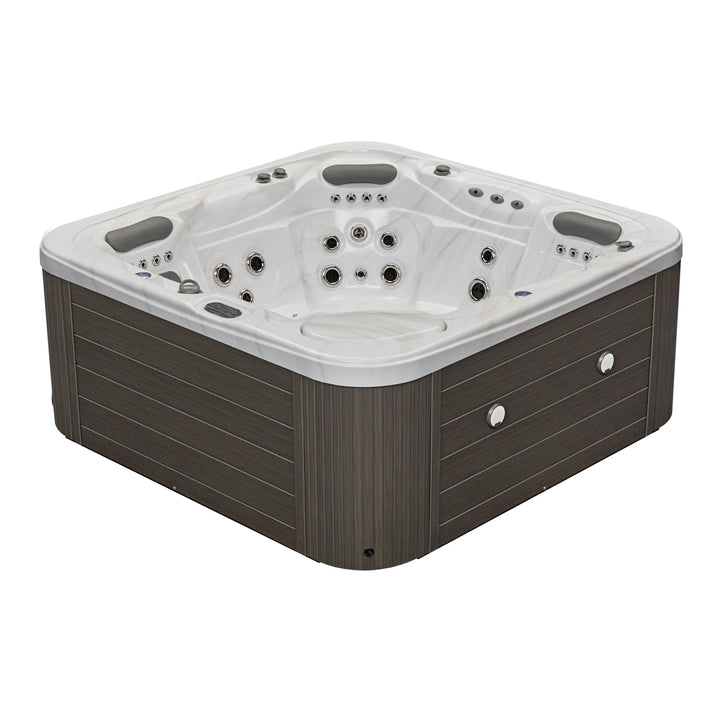

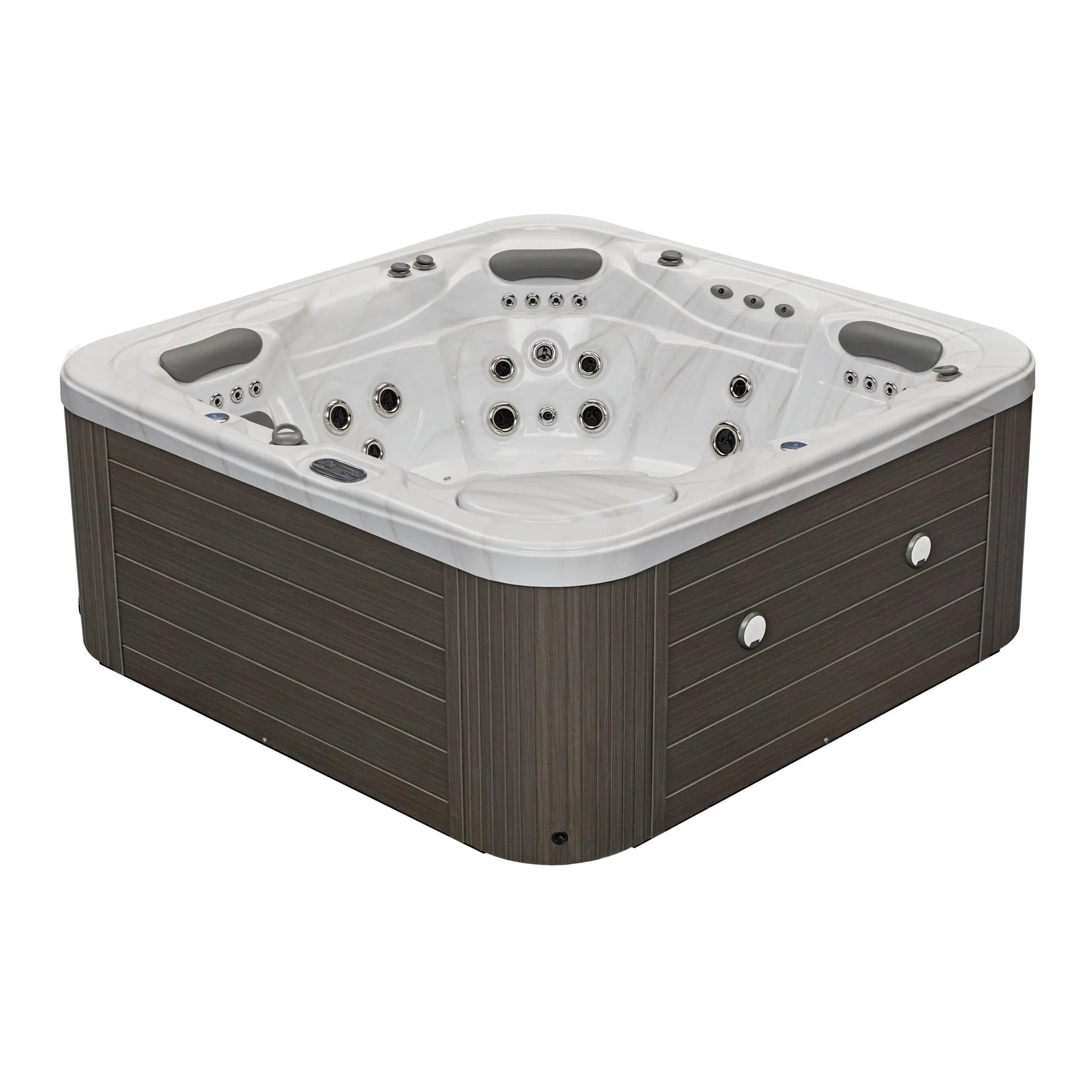

Infinity Elite 5-Person Hot Tub With Dual Loungers
The Luxury Spas Infinity Elite Series Hot Tub combines two lounge seats and three bucket seats in a five-person layout. Stretch out together or choose an upright seat, with water features, LED lighting, and Bluetooth audio setting the scene.
Its massage system pairs 77 adjustable stainless steel water jets with eight air-bubble jets. Two 2 HP jet pumps, separate filtration, and Balboa controls support everyday soaking in an 85″ × 85″ footprint.
Electrical planning: The Infinity requires a dedicated 240V / 50A GFCI-protected circuit. Have a licensed electrician confirm the current spa's wiring diagram, connection requirements, and local code before installation.
Who Is the Infinity Best For?
The Infinity is worth comparing if you want two lounge seats, additional guest seating, and a choice between water massage and air bubbles. Its five-person layout combines two reclining positions with three bucket seats, while fountains, lighting, and Bluetooth audio add atmosphere.
It suits buyers planning a larger, dedicated 240V spa installation. Compare the layout and equipment package against how you will actually use the spa, especially if most sessions will involve only one or two bathers.

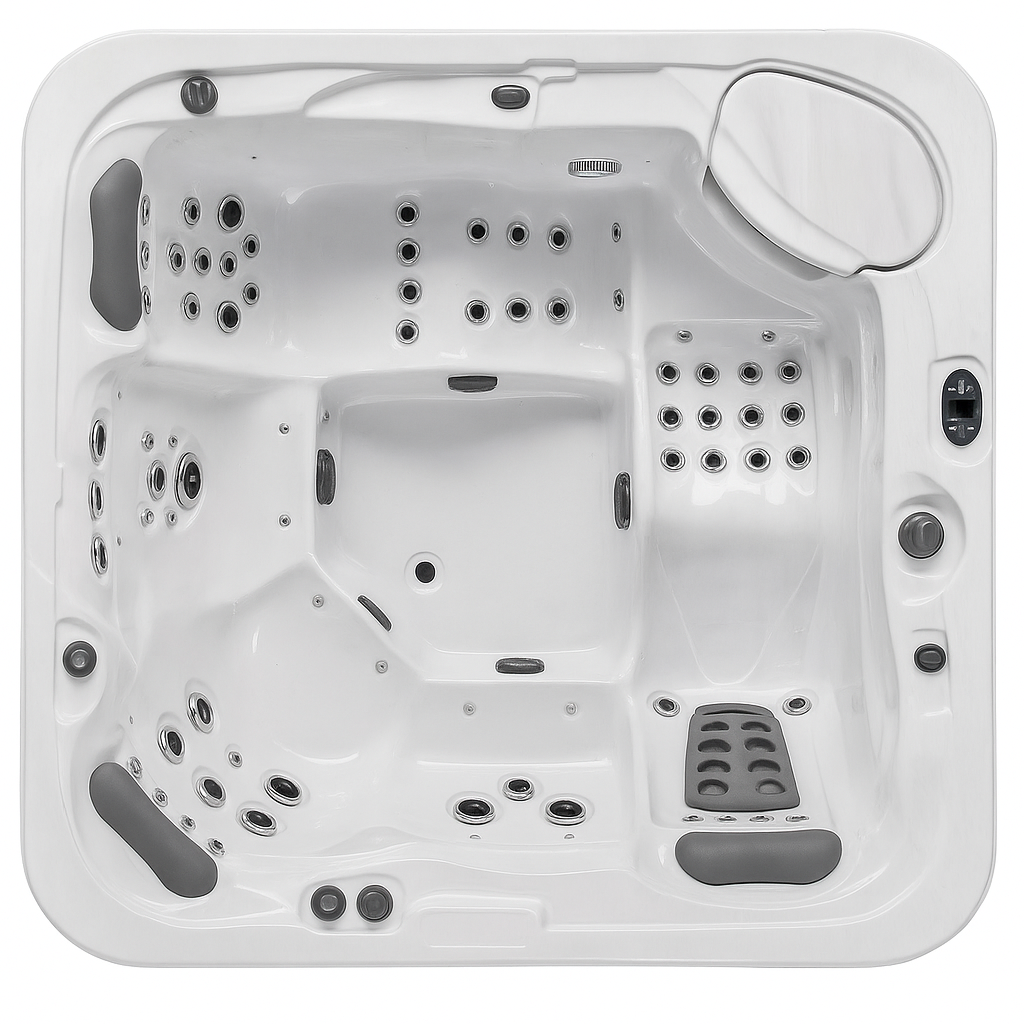

Two Loungers With Three Bucket Seats
The Infinity gives two bathers reclining positions while keeping three upright seats available for guests or a change of posture. It is a useful arrangement for couples who also expect to share their spa with family or friends.
Compare lounge contours, legroom, and jet locations for your regular bathers. The supplier's five-person capacity is a rating; actual comfort depends on body size, seating position, and how the shared foot space is used.
Water jets and air-bubble jets provide different sensations. The supplier lists 77 adjustable stainless steel water jets plus eight air-bubble jets, rather than one undifferentiated massage-jet count.
Seating, Massage & Atmosphere

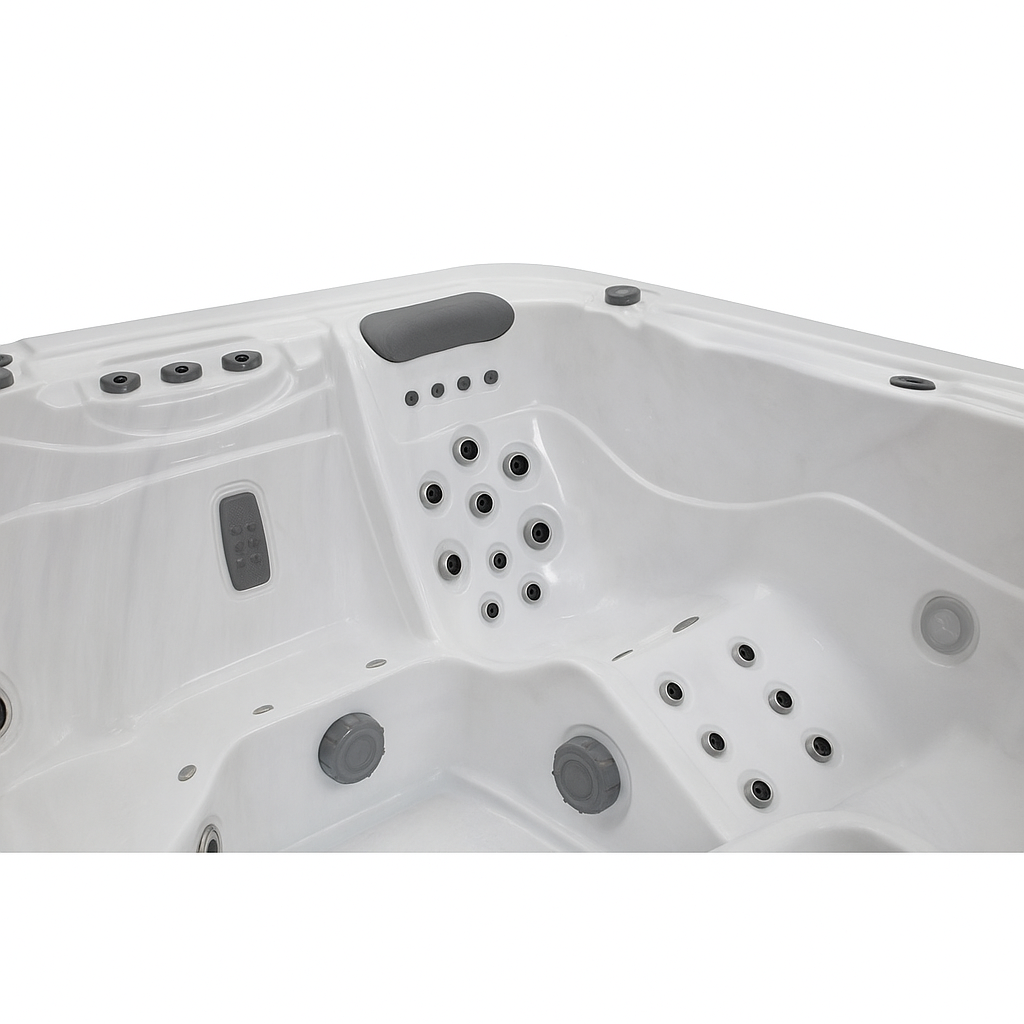

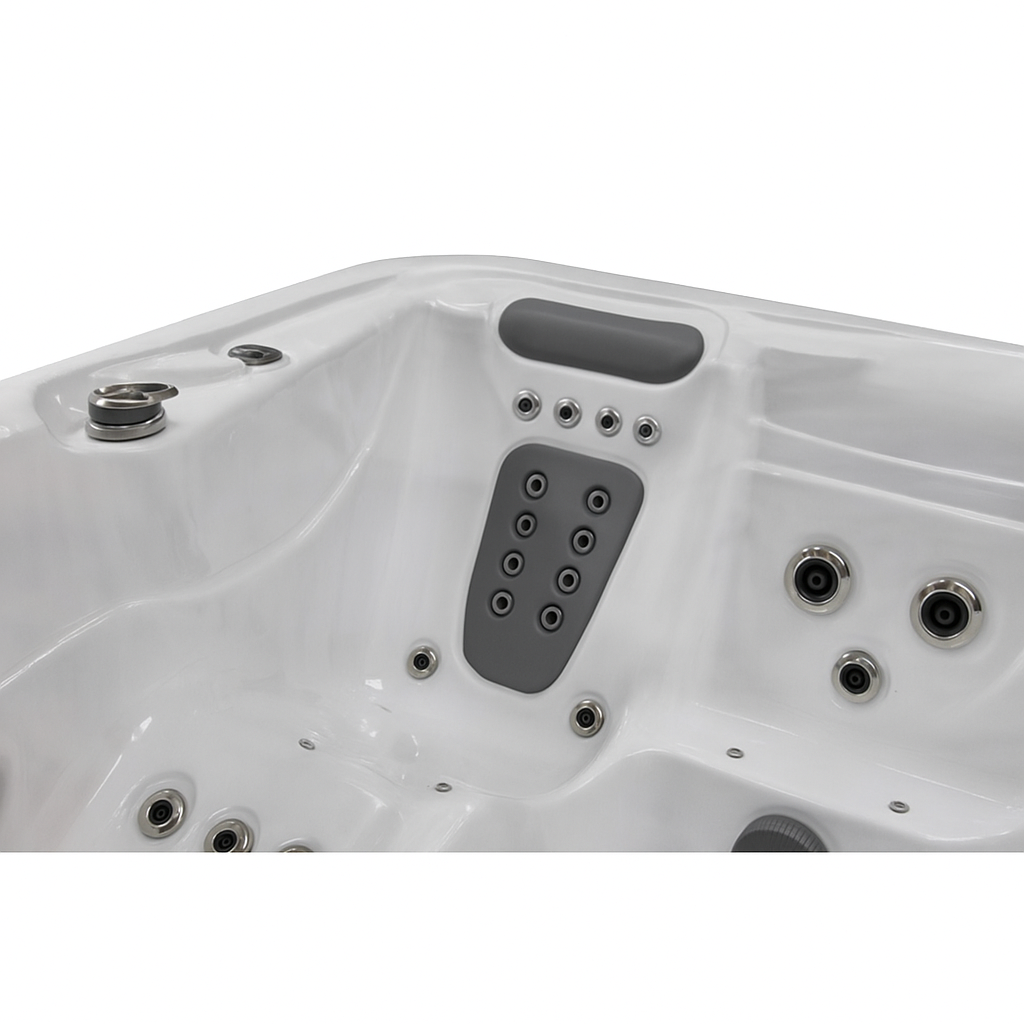

Dual Lounge Seating
Two full-length lounge seats offer reclining options, while three contoured bucket seats provide upright positions for family and guests.

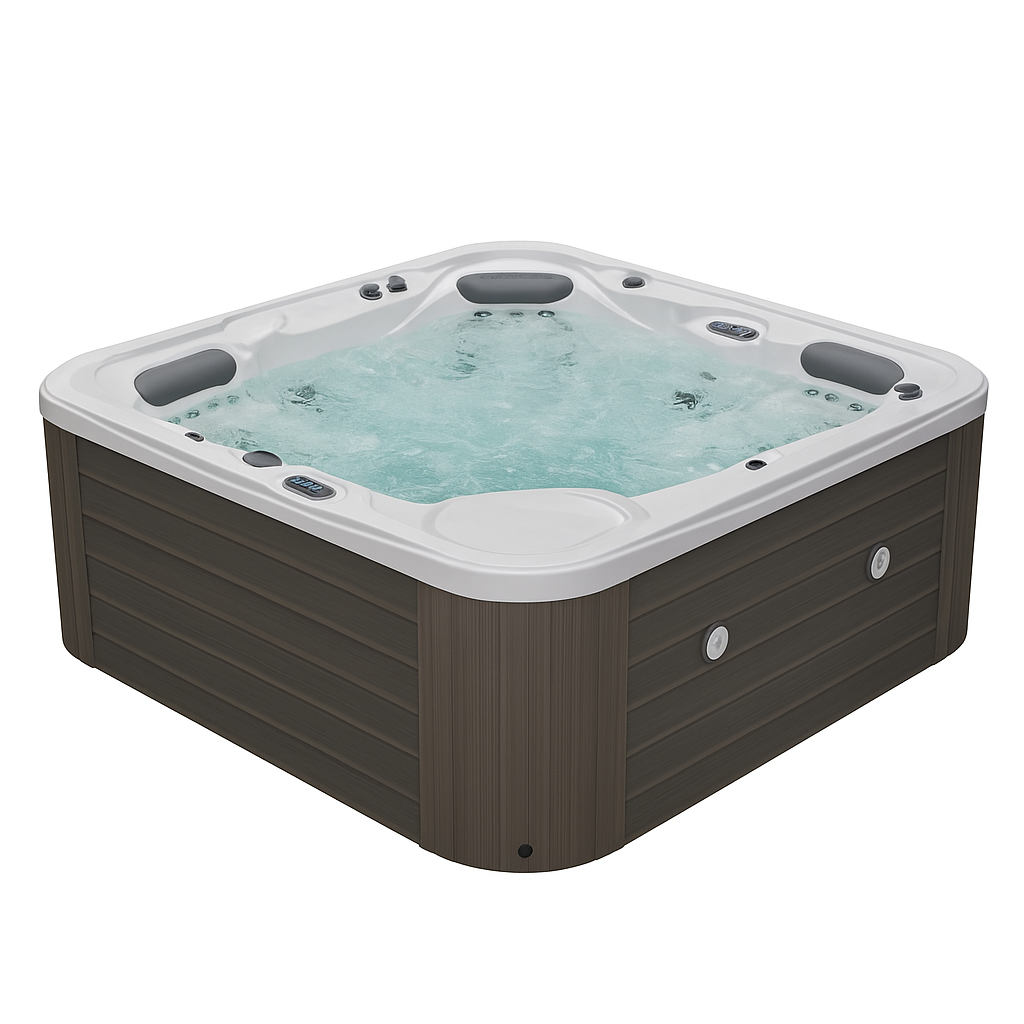

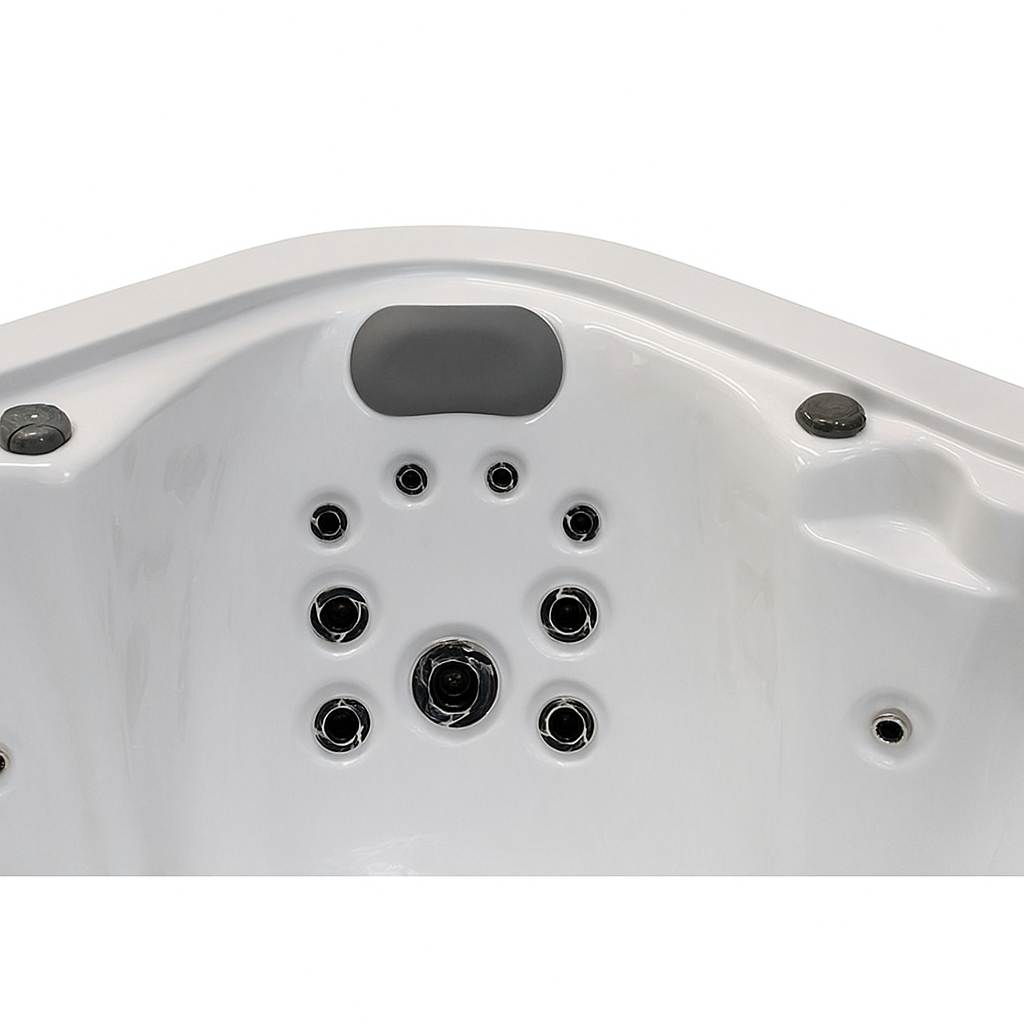

Water Jets & Air Bubbles
Adjustable water jets provide massage, while a separate air-bubble system adds a different sensation. Dual jet pumps power the water-massage system.

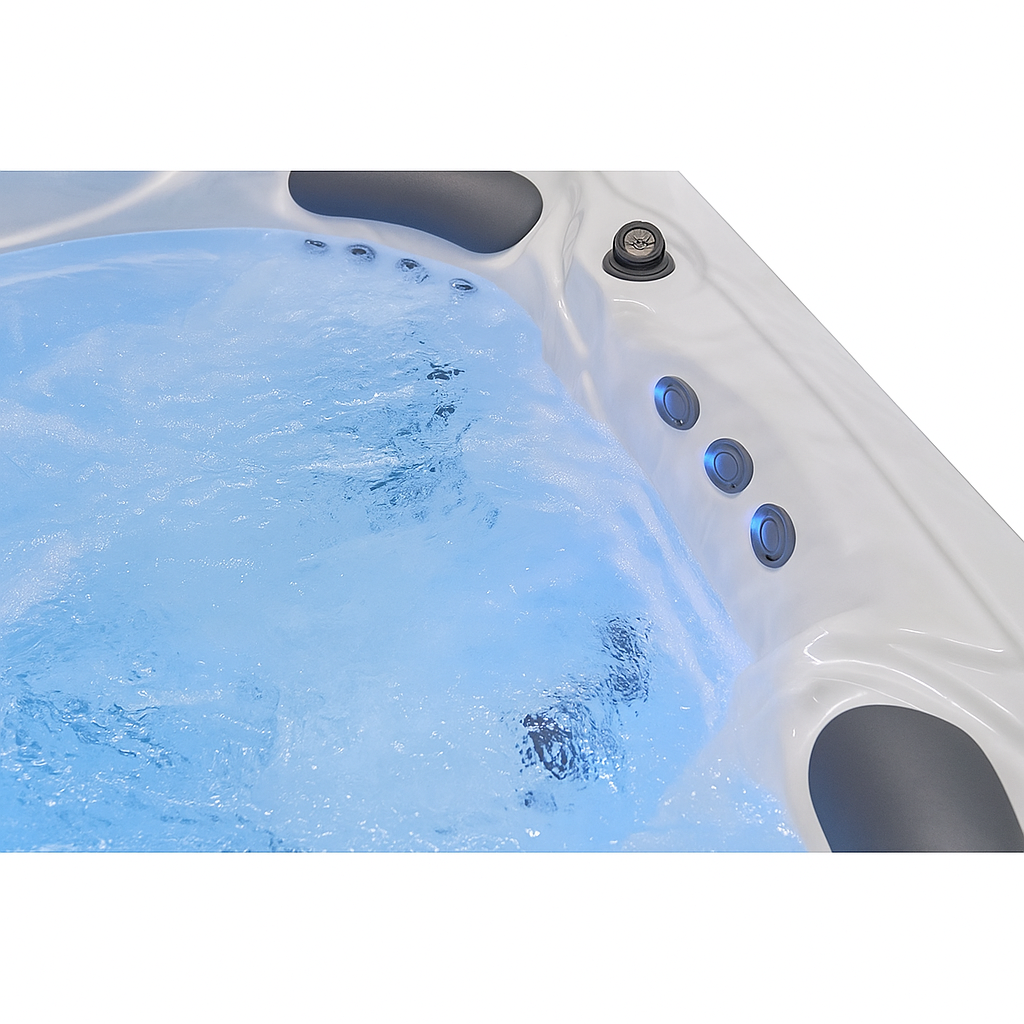

Water Features & Audio
Two pop-up fountains and a three-tier waterfall column add moving water. Bluetooth audio, LED lighting, and three neck pillows complete the experience.
Heating & Circulation
A 5.5 kW heater works with Balboa controls, foam insulation, a dedicated filtration pump, and an ozonator.
Product Specifications
| Brand / Model | Luxury Spas USA / Infinity Elite Series |
|---|---|
| Supplier Model Code | LS-594CGE |
| Seating Capacity | Up to 5 adults |
| Seating Layout | 2 lounge seats and 3 bucket seats |
| Exterior Dimensions | 85″ W × 85″ D × 36″ H |
| Interior Dimensions | 80″ W × 80″ D × 28″ H |
| Dry Weight | Approximately 757 lb |
| Jet Configuration | 77 adjustable stainless steel water jets plus 8 air-bubble jets |
| Jet Pumps | Two 2 HP pumps |
| Additional Pumps | 1 air-bubble pump and 1 water-filtration pump |
| Heater | 5.5 kW |
| Control System | Balboa operating system |
| Electrical Requirement | Dedicated 240V / 50A GFCI-protected circuit |
| Listed System Power | 9,850 W |
| Water Features | 2 pop-up fountains and a three-tier waterfall column |
| Audio / Lighting | Bluetooth audio / color-changing LED mood lighting |
| Neck Pillows | 3 cushioned pillows |
| Water Care | Hydrozone ozonator and water filtration |
| Insulation | Multi-layer foam insulation |
| Included Accessories | UV-rated insulated spa cover and matching steps |
Seating capacity is the supplier's rating; fit varies with bather size and position. Dry weight excludes water and occupants. Listed system wattage is not a constant operating draw or an estimate of daily energy use.
Infinity vs. Estes: Compare Two Dual-Lounger Spas
Both models combine two loungers with three bucket seats and a separate filtration or circulation pump. The Infinity adds a dedicated air-bubble system, while the Estes uses two higher-rated jet pumps.
| Feature | Infinity | Estes |
|---|---|---|
| Rated capacity | 5 adults | 5 adults |
| Seating layout | 2 loungers and 3 bucket seats | 2 loungers and 3 bucket seats |
| Exterior dimensions | 85″ × 85″ × 36″ | 83″ × 83″ × 35″ |
| Massage package | 77 water jets plus 8 air-bubble jets | 54 adjustable massage jets |
| Jet pumps | Two 2 HP pumps | Two 3 HP pumps |
| Separate water pump | Filtration pump | Circulation pump |
| Water features | 2 pop-up fountains and three-tier waterfall column | Illuminated waterfall |
Scroll horizontally on smaller screens. Jet counts and horsepower alone do not establish stronger massage or better seating comfort.
Explore our Premium Hot Tub Collection for more layouts, or use our Hot Tub Buying Guide to compare seating, equipment, and installation needs.
Optional Wi-Fi Control
A compatible plug-in Wi-Fi adapter is available for $350 through a custom quote. Wi-Fi is optional and is not included in standard cart checkout. Contact us to confirm compatibility and add it to your order.
What's Included
- Infinity spa with installed jets, pumps, heater, and Balboa controls
- Bluetooth audio, LED lighting, fountains, waterfall, and three neck pillows
- Installed ozonator and filtration equipment
- UV-rated insulated cover and matching spa steps
How Much Space Does the Infinity Need?
The Infinity measures 85 inches wide, 85 inches deep, and 36 inches high. Its cabinet occupies approximately 7 feet 1 inch square. Add space for steps, cover operation, safe movement, and access to equipment panels.
The listed interior dimensions are 80 by 80 by 28 inches. These are shell dimensions rather than measurements of usable lounge length or operating water depth. Confirm the seating diagram and fit before ordering.
The approximately 757 lb dry weight excludes water and bathers. Request the complete filled operating load before having a qualified professional assess a deck or elevated installation. Indoor projects also require drainage, ventilation, humidity control, structural support, and electrical planning.
Plan Your Installation
- Foundation: Provide a level base rated for the filled spa and bathers. The 757 lb dry weight excludes water and occupants. Have a qualified professional assess any deck or elevated installation.
- Clearance: Leave space for servicing, cover operation, safe entry, and exit. Confirm equipment-panel locations before deciding where the spa will sit.
- Delivery route: Measure gates, turns, steps, and overhead obstructions. Request packaged dimensions when checking tight access.
- Electrical: Have a licensed electrician use the wiring diagram for your exact spa and control system.
Review our Hot Tub Installation Guide and Electrical Planning Guide.
Filtration, Water Care & Running Costs
Follow the owner's manual for water testing, sanitizer, filter cleaning, and water changes. The ozonator supplements routine water care. Keep the cover secured between uses and follow the manufacturer's cold-weather operating or winterization instructions.
The water-filtration pump supports circulation independently of the main massage pumps. The separate air pump adds bubbles during use. Follow the supplied Balboa instructions for operating and filtration settings, and maintain the specified sanitizer level even when ozone is operating.
Operating costs depend on climate, utility rates, water temperature, cover use, and bathing frequency. Budget for electricity, treatment supplies, replacement filters, and servicing. Foam insulation and the fitted cover help retain heat; the 9,850 W system listing is not a constant operating draw or a monthly cost estimate.
Shipping & Placement
This spa ships by LTL freight with standard curbside delivery within the contiguous United States. Backyard placement, stairs, crane service, and White Glove assistance require separate arrangements. Confirm availability, charges, and a current shipping estimate before ordering.
Contact us with your ZIP code and access details for help planning delivery.
Manual & Warranty Information
Luxury Spas USA advertises a 10-year structural warranty. Request the current Infinity installation manual and warranty terms applicable to your order before scheduling electrical work. We can help clarify component coverage, parts and labor provisions, and exclusions.
Infinity Elite Series FAQs
How many people does the Infinity seat?
The supplier rates the Infinity for up to five adults, with two lounge seats and three upright bucket seats. Comfort varies with body size and seating position.
Does the Infinity have two lounge seats?
Yes. Its two full-length lounge seats provide reclining positions alongside three bucket seats for guests or an alternative posture.
How many jets does it have?
The supplier lists 77 adjustable stainless steel water jets plus eight separate air-bubble jets. Water massage and air bubbles are different parts of the system.
What pumps are included?
The Infinity includes two 2 HP jet pumps, one air-bubble pump, and a separate water-filtration pump.
How large is the Infinity?
Its exterior measures 85 inches wide by 85 inches deep by 36 inches high. Allow additional room for steps, cover operation, and maintenance access.
Is this a plug-and-play hot tub?
No. The Infinity requires a dedicated 240V / 50A GFCI-protected circuit installed by a licensed electrician using the exact unit’s wiring instructions.
What entertainment and water features are included?
Bluetooth audio, color-changing LED lighting, two pop-up fountains, a three-tier waterfall column, and three cushioned neck pillows are included.
Is Wi-Fi included with Bluetooth audio?
No. Bluetooth audio is included. Wi-Fi control uses an optional compatible adapter, available for $350 through a custom quote. Confirm compatibility and supported functions before ordering.
Are the cover and steps included with delivery?
A UV-rated insulated spa cover and matching steps are included. Standard delivery is curbside; movement to the installation location requires separate arrangements.
