Luxury Spas USA | Galley WS-008

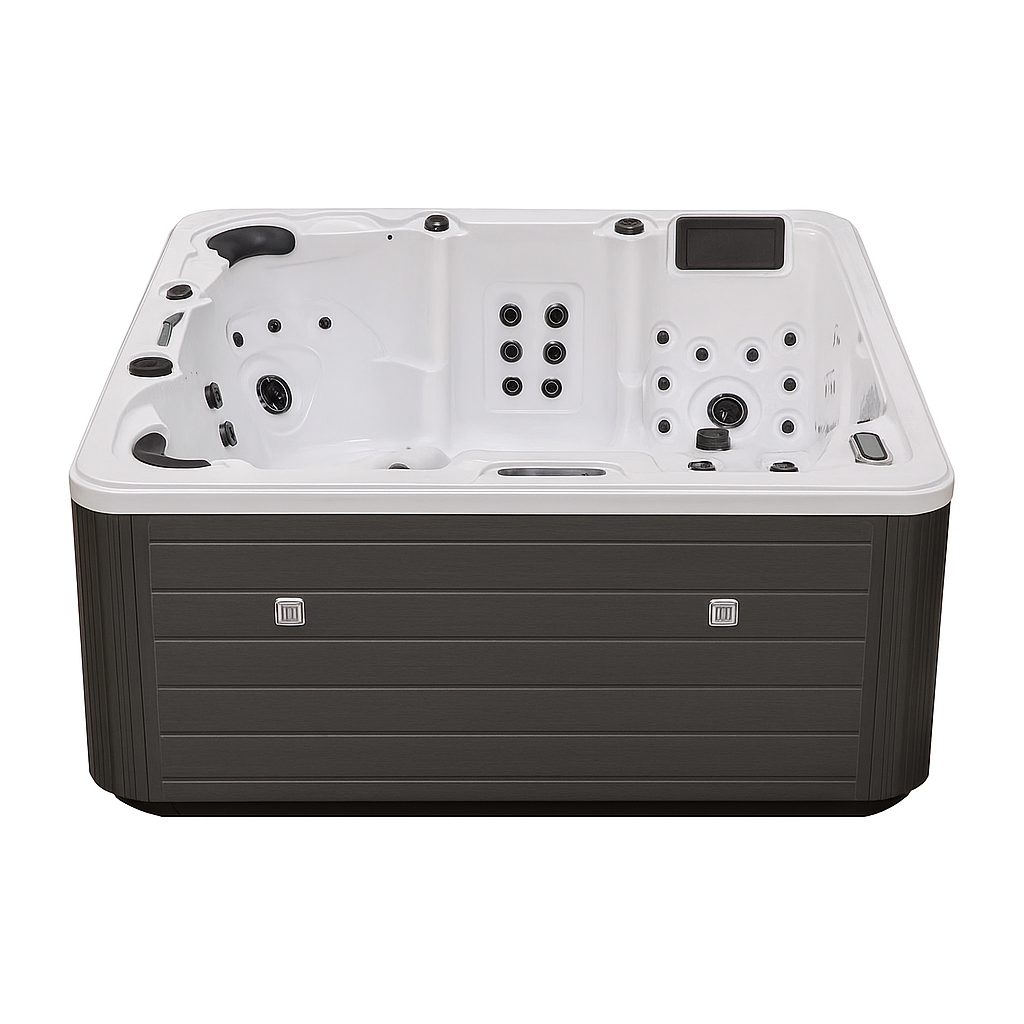

Galley WS-008 5-Person Hot Tub With Lounge Seating
The Luxury Spas Galley WS-008 Hot Tub combines a five-person layout with one lounge seat, two body-massage seats, and additional upright seating. Its Cloud Gray interior, cascading waterfall, Bluetooth audio, and LED lighting create an inviting setting for a shared backyard soak.
A 69-jet system, two 2 HP jet pumps, and a 5.5 kW titanium heater provide the equipment behind the experience. The spa measures 85″ W × 85″ D × 39″ H, with a cover and steps included.
Electrical planning: This is a 240V / 50A spa, requiring a dedicated GFCI-protected circuit. Have a licensed electrician verify the current model's wiring diagram, connection requirements, and local code before installation.
Who Is the Galley Best For?
The Galley is worth comparing if you want one full-body lounge, dedicated body-massage seats, and both water massage and air bubbles. Its five-person layout offers a mix of reclining and upright positions, with a waterfall, lighting, and Bluetooth audio for shared soaking.
Choose around the positions you expect to use most. Its 85-inch-square cabinet and 39-inch exterior height also deserve attention when planning entry steps, delivery access, and the final installation area.

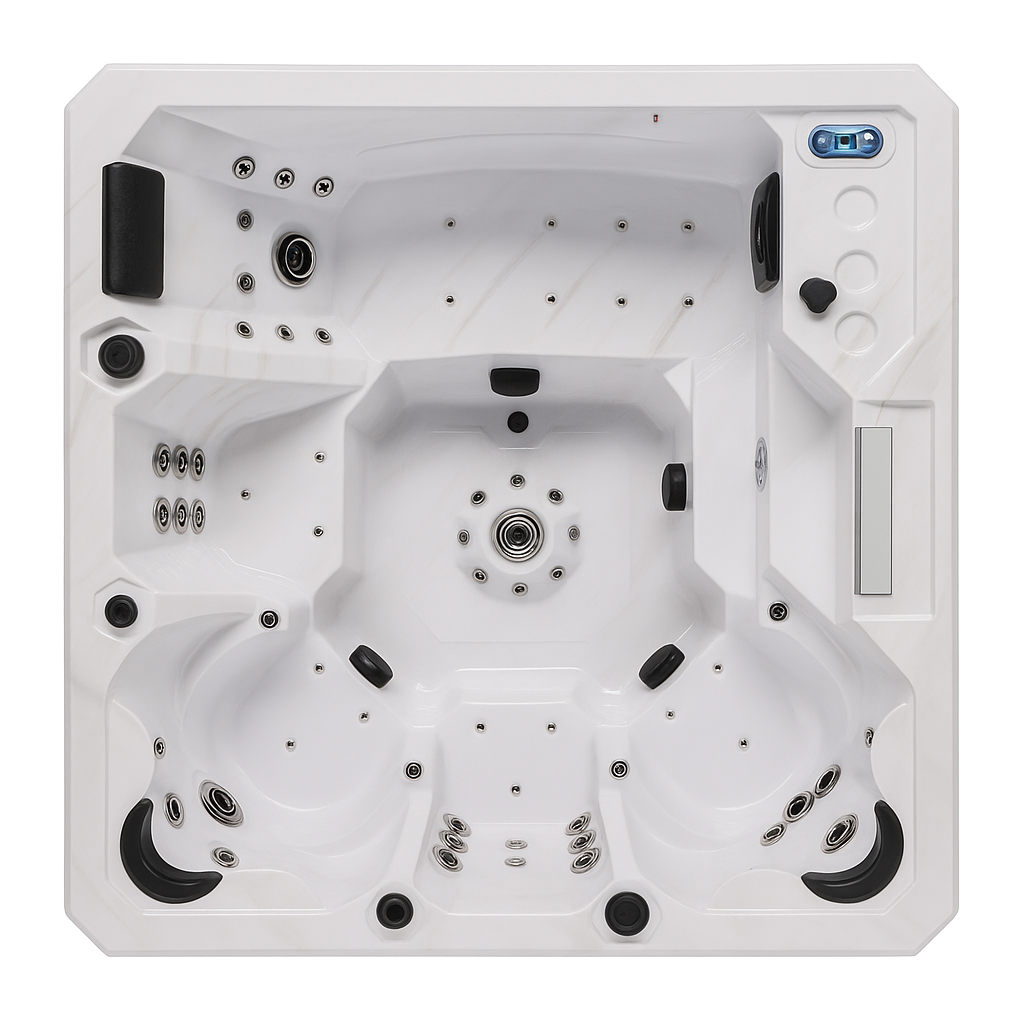

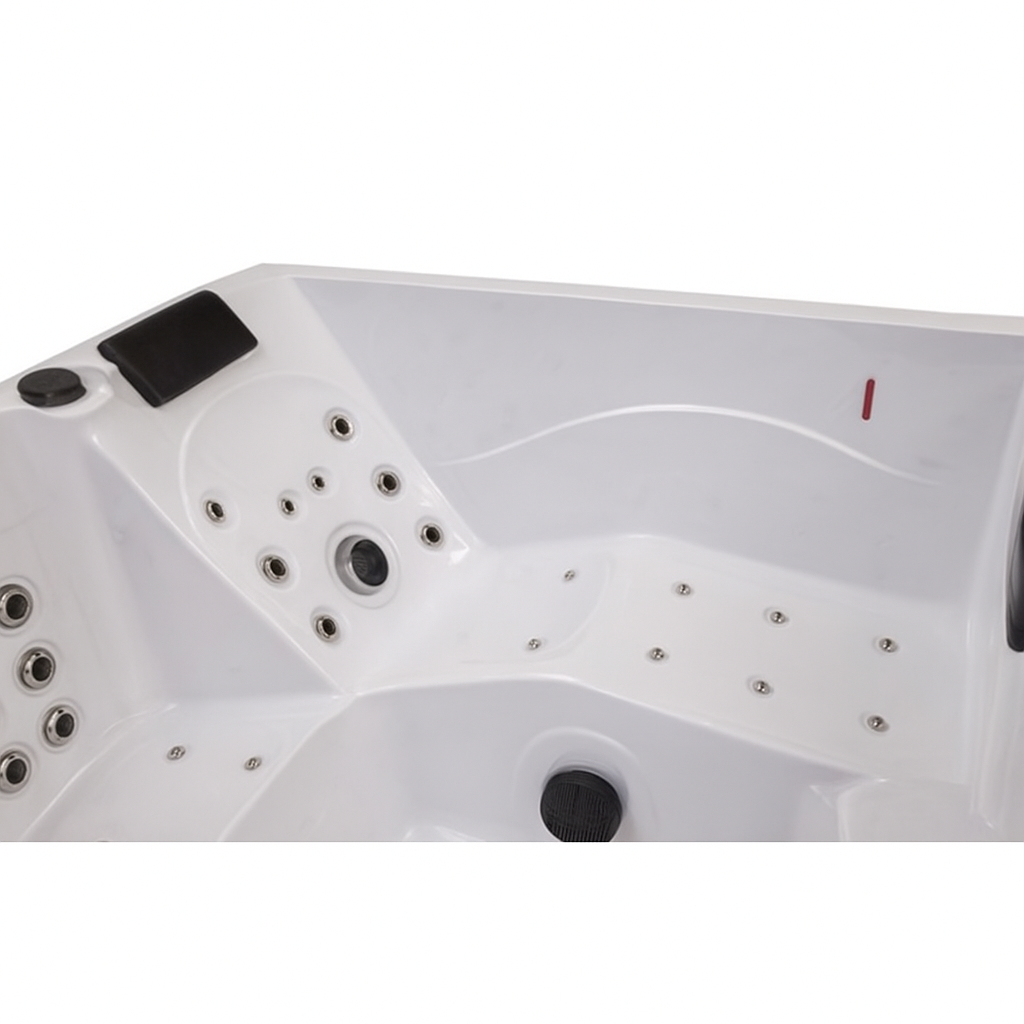

One Lounge and Two Body-Massage Seats

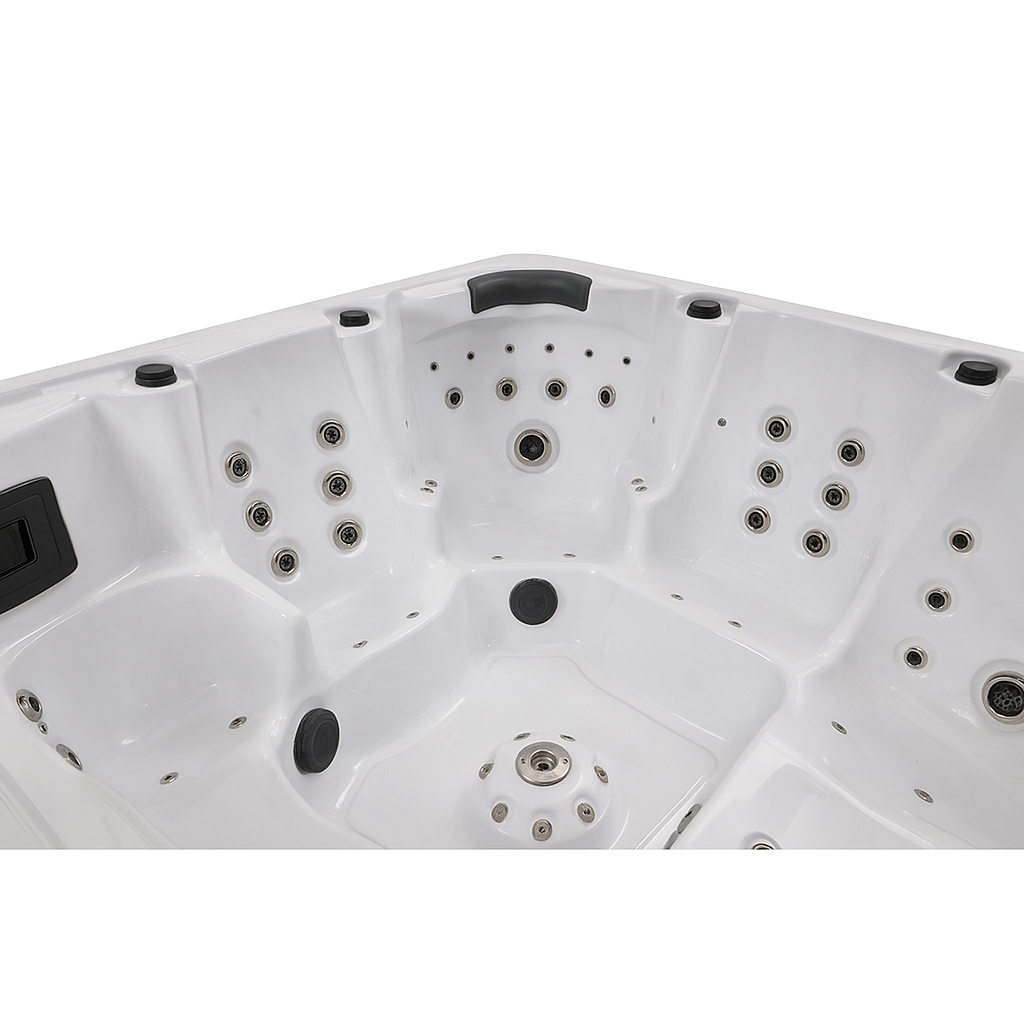

The Galley combines a reclining lounge with two dedicated body-massage seats and additional upright seating. Bathers can choose between stretching out and sitting upright rather than sharing an identical seat style.
Compare the seat contours, legroom, and where the jets meet your back and shoulders. Five-person capacity is the supplier's rating; comfort depends on body size, posture, and how the shared foot space is used.
If two regular bathers both want a full lounge, compare a dual-lounger model before choosing. Water jets and air-bubble jets provide different sensations, so compare the seating and jet locations as well as the total count.
Seating, Jets & Atmosphere
A Choice of Seating Positions
Stretch out in the lounge or choose an upright body-massage seat. The mixed layout lets bathers select the position they prefer.

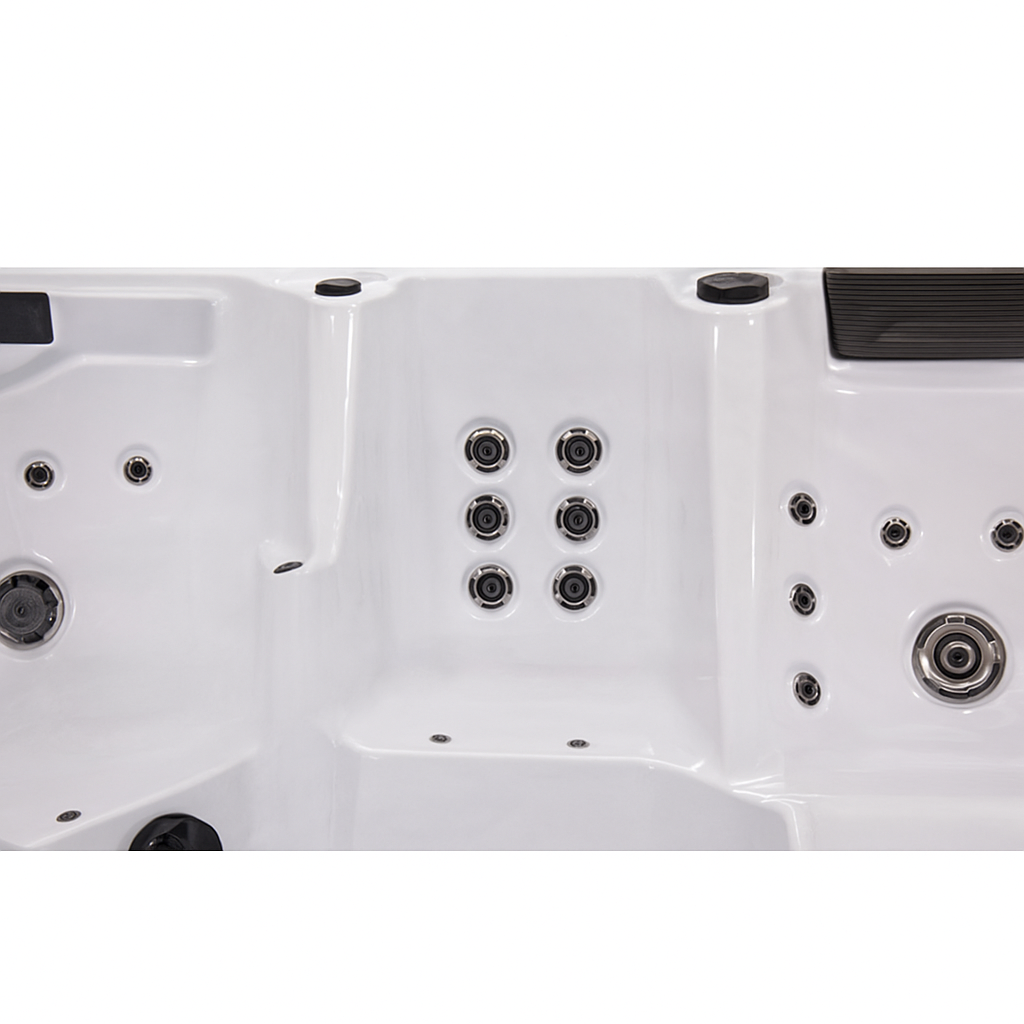

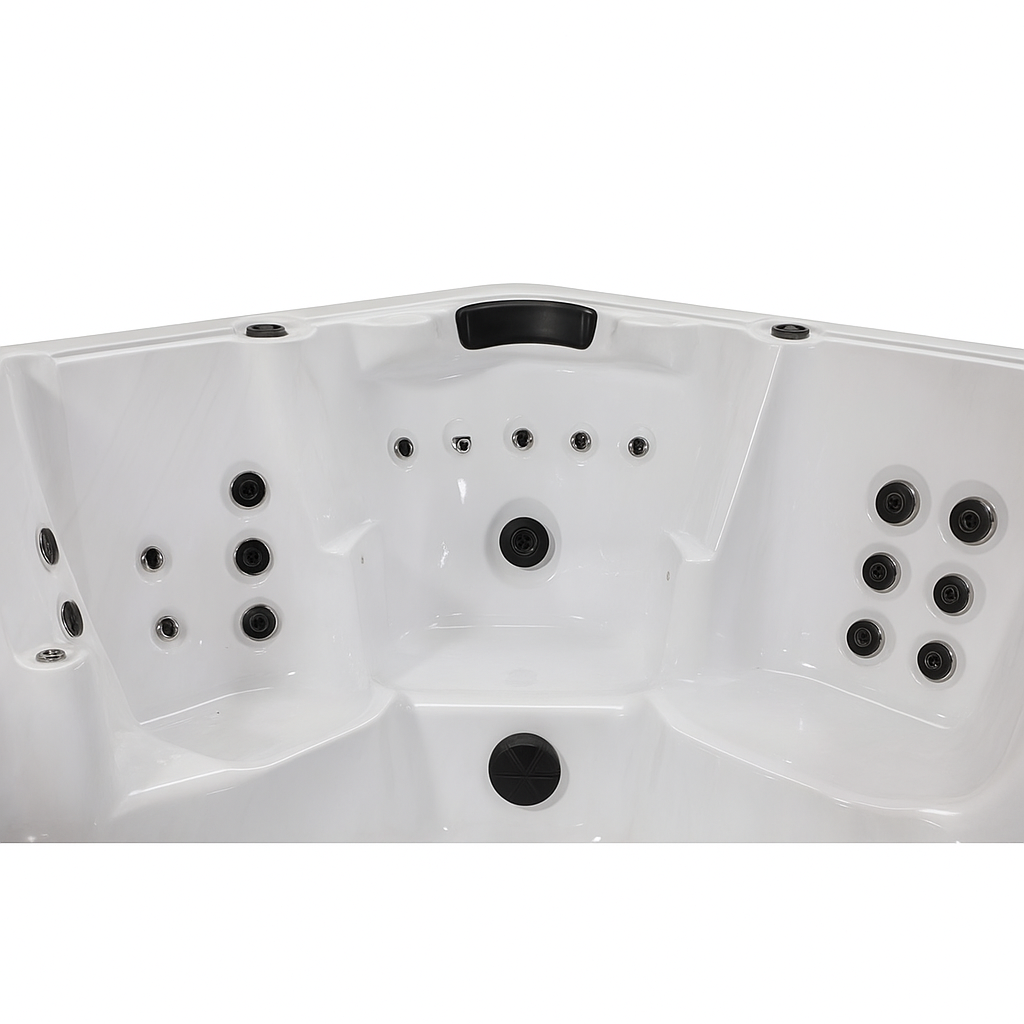

Water & Air Jets

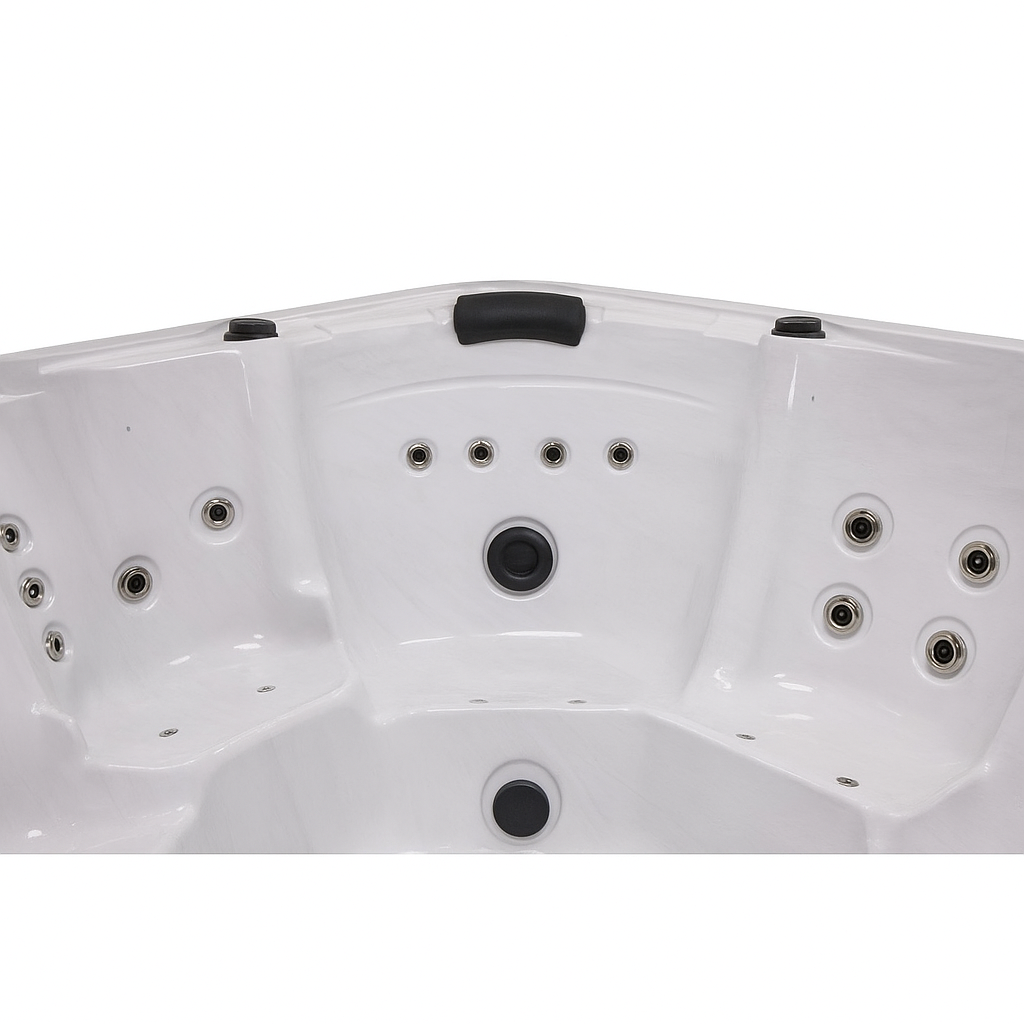

The supplier lists 69 total jets, including 26 rotating jets and 20 air-bubble jets, plus a center foot-massage feature.

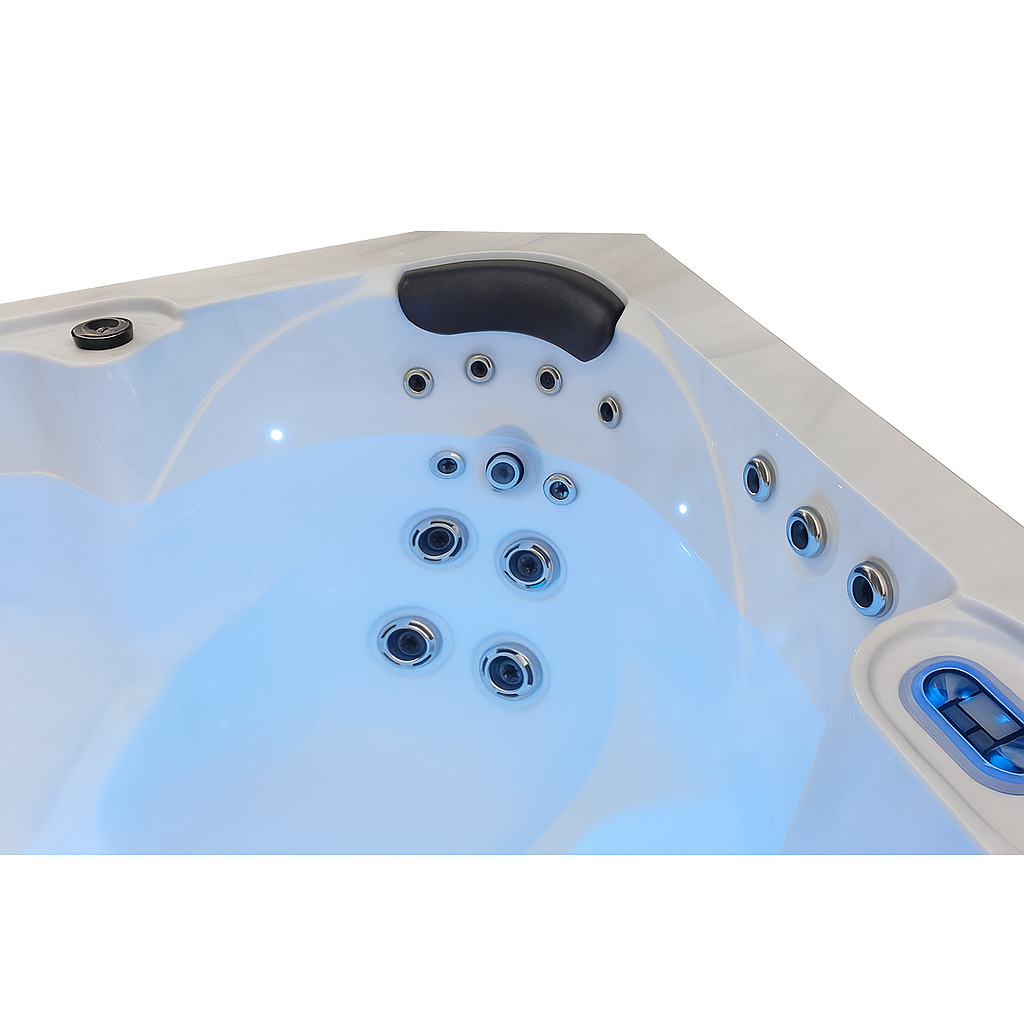

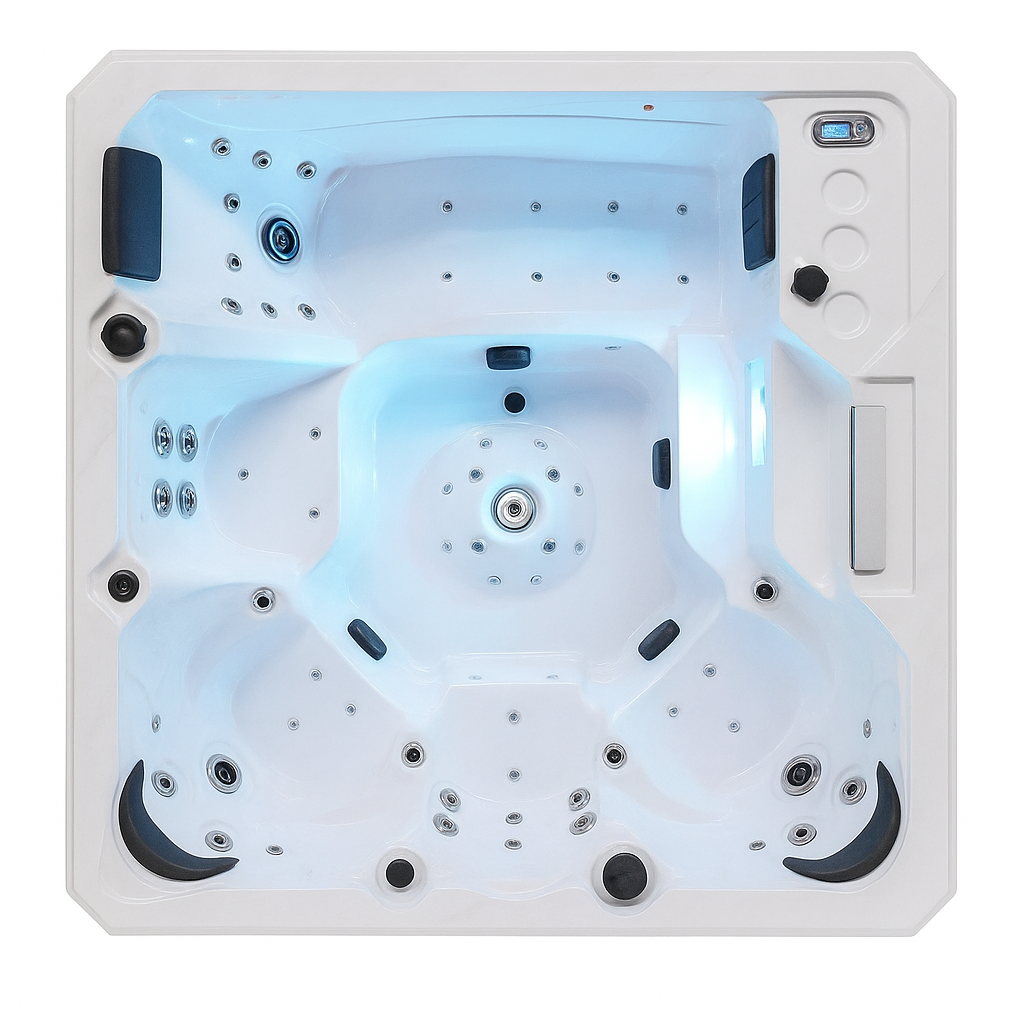

Music, Lighting & Waterfall
Built-in Bluetooth audio, color-changing LED lighting, a cascading waterfall, and three neck pillows add comfort and atmosphere.
Heating & Water Care
Balboa controls, a titanium heater, foam insulation, a dedicated filtration pump, and an ozonator support everyday operation.
Product Specifications
| Brand / Model | Luxury Spas USA / Galley WS-008 |
|---|---|
| Seating Capacity | Up to 5 adults |

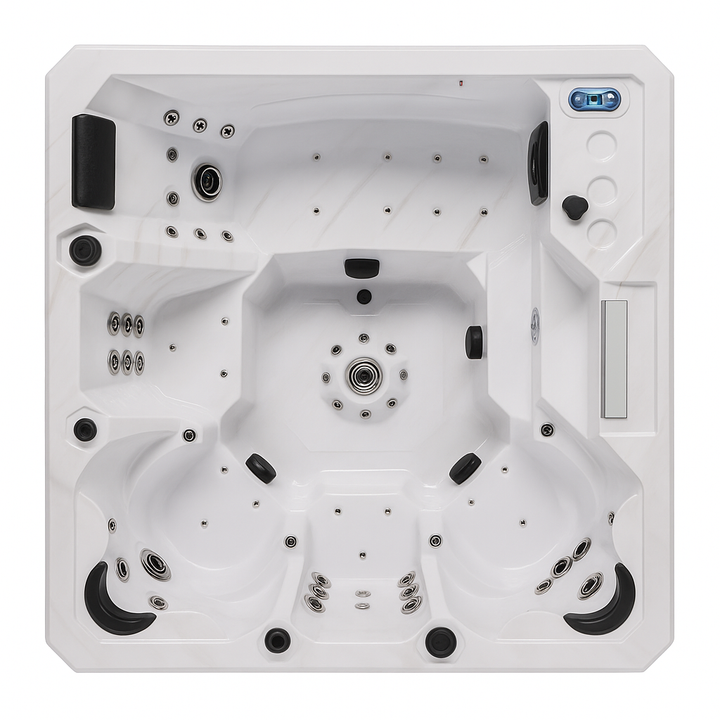

| Seating Layout | 1 lounge, 2 body-massage seats, and additional upright seating |
| Exterior Dimensions | 85″ W × 85″ D × 39″ H |
| Interior Dimensions | 80″ W × 80″ D × 34″ H |
| Dry Weight | Approximately 660 lb |
| Interior Color | Cloud Gray |
| Total Jets | 69, including water and air-bubble jets |
| Jet Details | 26 rotating jets and 20 air-bubble jets within the total; center foot-massage feature |
| Jet Pumps | Two 2 HP pumps |
| Additional Pumps | 1 air-bubble pump and 1 water-filtration pump |
| Heater / Controls | 5.5 kW titanium heater / Balboa operating system |
| Listed System Power | 9,450 W |
| Electrical Requirement | Dedicated 240V / 50A GFCI-protected circuit |
| Water Feature | Cascading waterfall |
| Audio / Lighting | Bluetooth sound system / color-changing LED mood lighting |
| Neck Pillows | 3 cushioned pillows |
| Water Care | Hydrozone ozonator and water filtration |
| Insulation / Cabinet | Multi-layer foam insulation / UV- and fade-resistant polystyrene cabinet |
| Included Accessories | UV-rated insulated spa cover and matching steps |
Seating capacity is the supplier's rating; comfort varies by bather size and position. Dry weight excludes water and occupants. Listed system wattage is not a constant operating draw or an estimate of daily energy use.
Galley vs. Infinity: Mixed Seats or Dual Loungers?
Both models are rated for five adults and include two 2 HP jet pumps, an air pump, and separate filtration. Their lounge arrangements and cabinet heights give buyers useful differences to consider.
| Feature | Galley | Infinity |
|---|---|---|
| Rated capacity | 5 adults | 5 adults |
| Seating layout | 1 lounge, 2 body-massage seats, and additional upright seating | 2 loungers and 3 bucket seats |
| Exterior dimensions | 85″ × 85″ × 39″ | 85″ × 85″ × 36″ |
| Jet package | 69 total, including 20 air-bubble jets | 77 water jets plus 8 air-bubble jets |
| Jet pumps | Two 2 HP pumps | Two 2 HP pumps |
| Separate filtration pump | Included | Included |
| Water features | Cascading waterfall and center foot massager | 2 pop-up fountains and three-tier waterfall column |
Scroll horizontally on smaller screens. Water and air jets serve different purposes; total counts alone do not measure massage intensity or seating comfort.
Explore our Premium Hot Tub Collection for additional layouts. Our Hot Tub Buying Guide explains how to compare seating, equipment, and installation needs.
Optional Wi-Fi Control
A compatible plug-in Wi-Fi adapter is available for $350 through a custom quote. It is an optional accessory and is not included in standard cart checkout. Contact us to confirm compatibility and add it to your order.

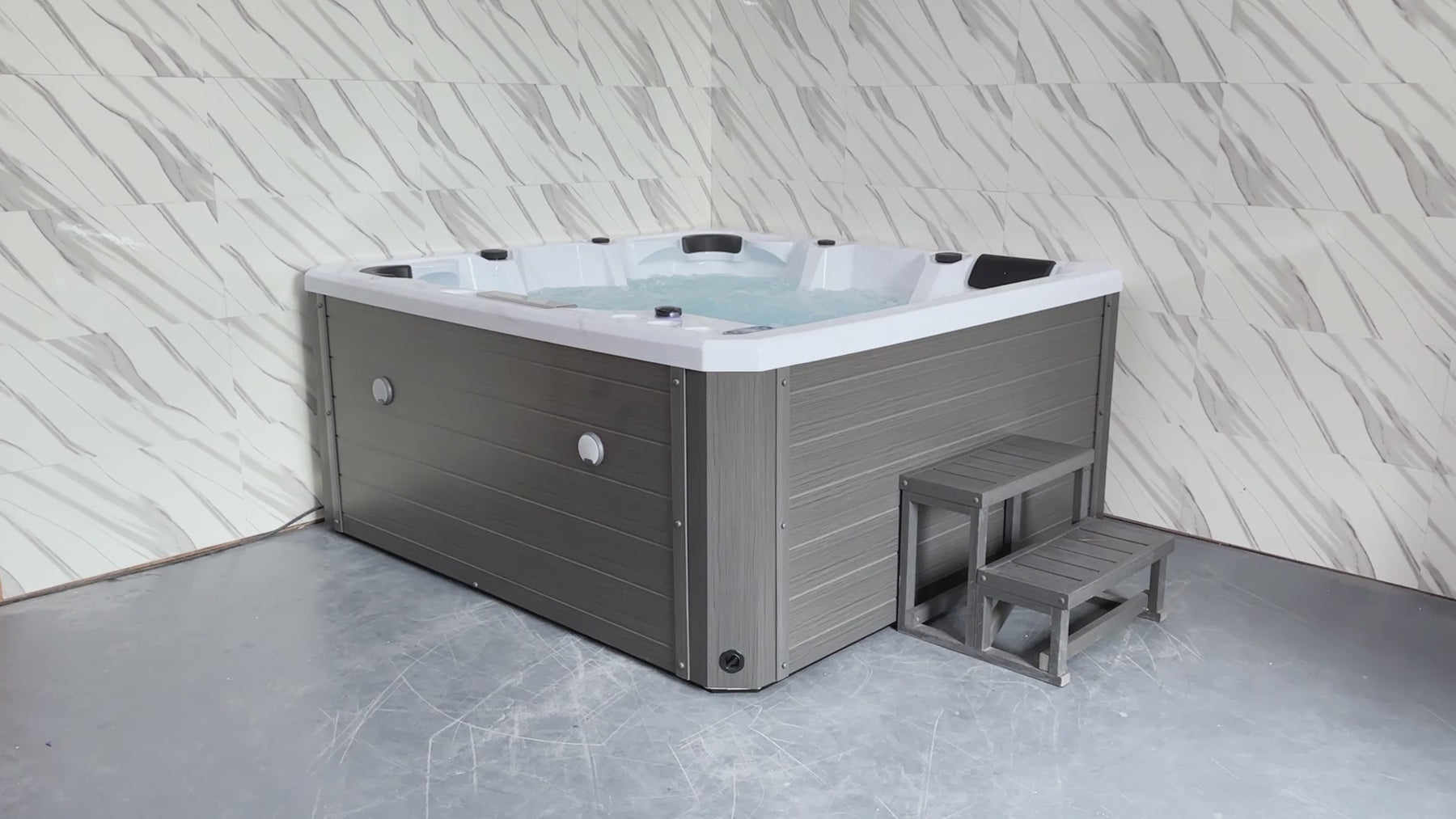

What's Included
- Galley WS-008 spa with installed jets, pumps, heater, and Balboa controls
- Bluetooth audio, waterfall, LED lighting, and three neck pillows
- Installed ozonator and filtration equipment

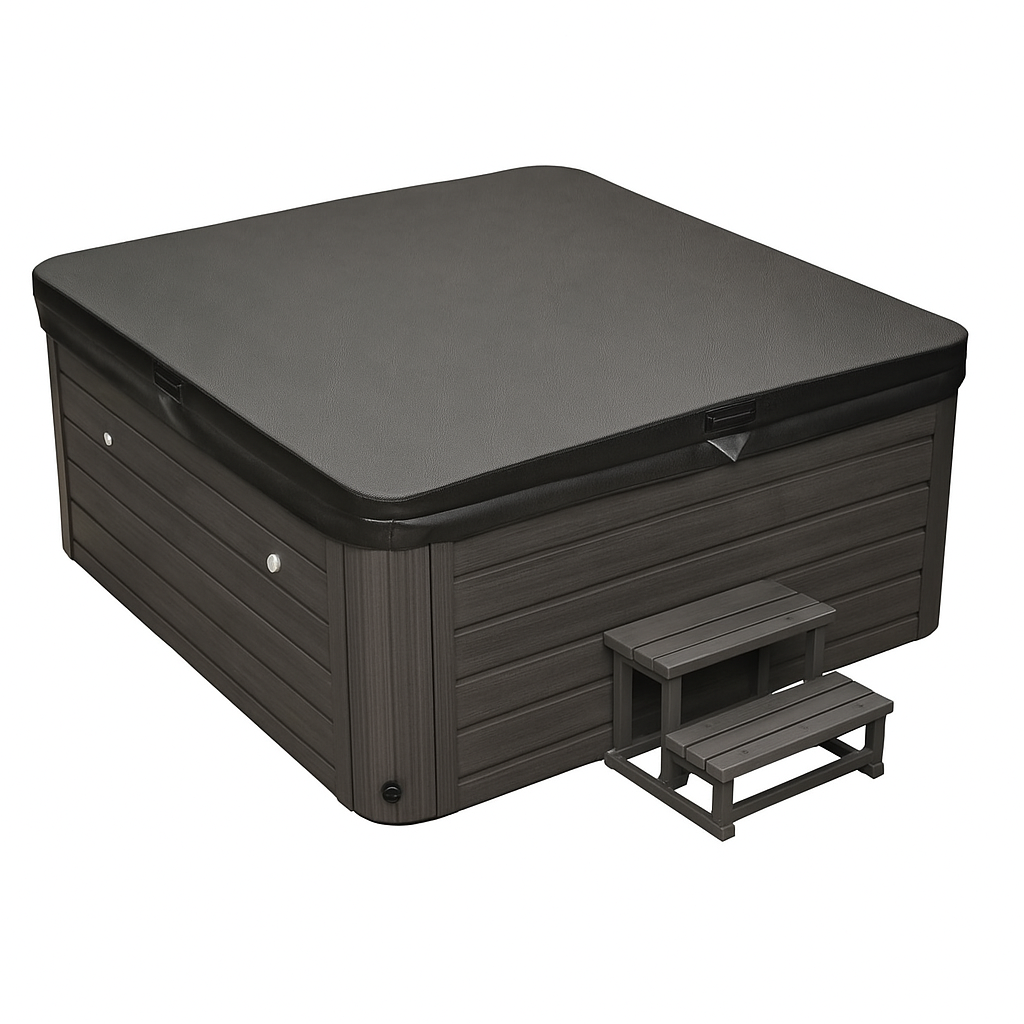

- UV-rated insulated cover and matching spa steps
How Much Space Does the Galley Need?
The Galley measures 85 inches wide, 85 inches deep, and 39 inches high. Its cabinet occupies approximately 7 feet 1 inch square. Add room for steps, cover operation, safe movement, and access to equipment panels.
The listed interior dimensions are 80 by 80 by 34 inches. These are shell dimensions rather than measurements of usable lounge length or operating water depth. Review the interior layout and entry arrangement before ordering.
The approximately 660 lb dry weight excludes water and occupants. Request the complete filled operating load before having a qualified professional assess a deck or elevated installation. Indoor projects also need drainage, ventilation, humidity control, structural support, and electrical planning.
Plan the Site & Delivery Route
- Foundation: Provide a level base rated for the filled spa and bathers. The 660 lb dry weight does not include water or occupants; have any deck or elevated installation assessed by a qualified professional.
- Clearance: Leave space for equipment servicing, cover removal, and safe entry and exit. Confirm the service-panel locations before finalizing placement.
- Access: Measure gates, turns, steps, overhead obstacles, and the route from curbside to the installation location. Request packaged dimensions when planning a tight delivery.
- Electrical: Use a licensed electrician and the wiring instructions supplied for your exact spa and control system.
Review our Hot Tub Installation Guide and Electrical Planning Guide.
Filtration, Water Care & Running Costs
Follow the owner's manual for water testing, sanitizer, filter cleaning, and water changes. The ozonator supplements routine water care. Keep the fitted cover secured between uses, and follow the manufacturer's cold-weather operating or winterization instructions.
The separate filtration pump moves water independently of the massage pumps, while the air-bubble pump adds bubbles during use. Follow the supplied Balboa instructions for operating modes and filtration settings. Keep filters clean and maintain the specified sanitizer level.
Energy costs depend on climate, utility rates, water temperature, cover use, and bathing frequency. Budget for electricity, treatment supplies, replacement filters, and servicing. Foam insulation and the fitted cover help retain heat; the 9,450 W system listing is not a constant power draw or a monthly cost estimate.
Shipping & Placement
The Galley ships by LTL freight with standard curbside delivery within the contiguous United States. Backyard placement, stairs, crane service, and White Glove assistance require separate arrangements. Confirm availability, charges, and a current shipping estimate before ordering.
Manual & Warranty Information
Download the Studio Series Owner's Manual (PDF) for general ownership guidance. Confirm the model-specific control and wiring instructions before installation.
Luxury Spas USA advertises a 10-year structural warranty. Contact us for the warranty terms applicable to your order, including parts, labor, accessory coverage, and exclusions.
Galley WS-008 FAQs
How many people does the Galley seat?
Luxury Spas USA rates the Galley for up to five adults, with one lounge, two body-massage seats, and additional upright seating. Comfort varies with body size and position.
Does the Galley have two lounge seats?
The supplier specifies one lounge and two dedicated body-massage seats. Compare a dual-lounger model if two reclining positions are your priority.
Are all 69 jets water-massage jets?
No. The 69-jet total includes 20 air-bubble jets. The supplier also identifies 26 rotating jets and a center foot-massage feature within the massage package.
What pumps are included?
The Galley includes two 2 HP jet pumps, one air-bubble pump, and a separate water-filtration pump.
How large is the Galley WS-008?
Its exterior measures 85 inches wide by 85 inches deep by 39 inches high. Add room for steps, cover operation, and equipment servicing. Exterior height is not water depth.
Is this a plug-and-play hot tub?
No. The Galley WS-008 requires dedicated 240V / 50A GFCI-protected service installed by a licensed electrician using the supplied unit’s wiring instructions.
Are Bluetooth, lighting, and a waterfall included?
Yes. Bluetooth audio, color-changing LED lighting, a cascading waterfall, and three cushioned neck pillows are included.
Is Wi-Fi included with the Bluetooth system?
No. Bluetooth audio is included. Wi-Fi control uses an optional compatible adapter, available for $350 through a custom quote. Confirm compatibility and supported functions before ordering.
Are the cover and steps included with delivery?
A UV-rated insulated spa cover and matching steps are included. Standard service is curbside freight delivery; movement to the installation location requires separate arrangements.
