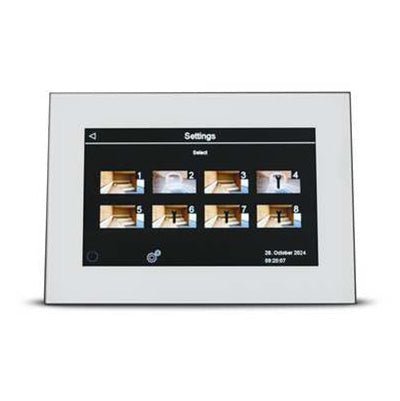

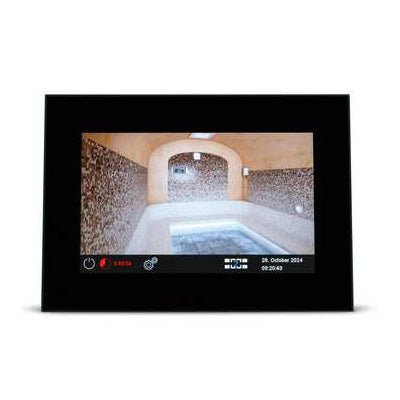

EOS Touch 3 Digital Touchscreen Sauna Control 7-Inch Display
- Free USA Shipping On Many Items
- Full Warranty
- Secure Checkout
- Authorized Dealer
Control Your Sauna Through a 7-Inch Full-Color Touchscreen
The EOS Touch 3 is a premium digital sauna control panel designed for intuitive operation of compatible private and commercial EOS sauna systems.
Its responsive capacitive touchscreen provides centralized access to temperature, operating time, lighting, ventilation, and other supported cabin functions. With the proper EOS power boxes and system extensions, one Touch 3 display can manage as many as eight separate sauna cabins.
Modern Control for Advanced EOS Sauna Systems
The Touch 3 combines a rimless glass appearance with an intuitive graphic interface. Guided setup and configurable menus allow the system to be tailored to the connected sauna installation.
The panel is suitable for a single luxury home sauna or a more complex commercial facility. Multi-cabin capability requires the corresponding EOS power boxes, communication components, and system extensions for each connected room.
- Brand
- EOS
- Model
- TOUCH 3
- Product type
- Digital sauna control panel
- Display
- 7-inch capacitive color touchscreen
- Available colors
- White and Black
- White SKU
- 14-949068
- Black SKU
- 14-949069
- Installation
- Flush mounted
- Power box
- Required and sold separately
Intuitive Operation with Scalable System Control
The Touch 3 is designed to serve as the user interface for a complete EOS control system. The functions available depend on the connected power box, sensors, cabin equipment, and optional expansion modules.
Full-Color Touchscreen
A large capacitive display provides clear access to operating settings, status information, menus, and supported cabin functions.
Control Up to Eight Cabins
A single display can manage up to eight connected cabins when the required EOS power boxes and extensions are installed.
Precise Temperature Control
Supports dry-sauna temperature adjustment from approximately 86°F to 194°F when paired with compatible EOS equipment.
Clean Built-In Appearance
The control panel is designed for recessed installation, producing a modern, low-profile appearance outside the hot sauna room.
System Backup and Restore
Stored settings can be backed up and restored to help preserve configured preferences after maintenance or a system reset.
On-Site Firmware Updates
The system supports firmware updating through its interface for continued compatibility and long-term serviceability.
PIN Code Protection
Optional PIN protection can help limit access to configuration and service-level settings in shared or commercial environments.
Accessory Control Capability
Compatible system outputs and modules may support lighting, ventilation, humidification, and other approved cabin equipment.
Published Two-Year Warranty
Bathing Brands publishes two-year limited warranty coverage for consumer and commercial use.
Choose a White or Black Glass Control Panel
Both variants provide the same core control-panel functions. Select the color that best coordinates with the sauna exterior, control wall, surrounding hardware, and room design.
| Color | SKU | Published UPC | Application |
|---|---|---|---|
| White | 14-949068 | 652592102428 | Bright, neutral control-panel finish |
| Black | 14-949069 | Not published on the supplier page | Dark, high-contrast control-panel finish |
Select the desired color from the Shopify variant menu. The color choice does not determine the required power box. Power-box selection is based on the sauna heater and electrical configuration.
The Touch 3 Panel Is Not a Complete Sauna Control System
The EOS Touch 3 is the touchscreen user interface. It does not connect directly to the sauna heater and cannot operate a heater by itself. A compatible EOS power box is required and is sold separately.
The correct power box must match the heater voltage, electrical phase, heater output, installation type, and applicable EOS system design. Additional components may also be required depending on the heater, cabin type, desired features, and number of rooms being controlled.
Required but Not Included
- Compatible EOS North American power box
- Compatible electric sauna heater
- Required electrical supply and disconnects
- Field wiring between system components
- Licensed electrical installation
- Sauna room and ventilation system
- Sauna stones required by the selected heater
May Be Required or Optional
- Power extension box for higher-output installations
- Additional cabin power boxes
- Extended panel-to-power-box communication cable
- Extended sensor-to-power-box cable
- Additional sensors for supported applications
- Remote connectivity equipment
- Lighting or ventilation equipment
- Specialized control or expansion modules
Do not order a power box by price or heater wattage alone. Confirm the heater model, voltage, phase, total connected load, and EOS wiring plan before purchasing the control-system components.
Shop the Required and Optional EOS Components
The Touch 3 requires a compatible EOS power box and may require additional system components based on the heater, electrical supply, installation layout, number of cabins, and desired functions.
Required North American Power Boxes
Select only after confirming the sauna heater voltage, electrical phase, connected load, and approved EOS system configuration.
EOS Touch 3 Power Box, 9 kW, 208V 3-Phase - 14-949472 EOS Touch 3 Power Box, 15 kW, 208V 3-Phase - 14-949471 EOS Touch 3 Power Box, 9 kW, 240V 2-Phase - 14-949473Communication and Sensor Extension Cables
Extension cables may be needed when the control panel, sensor, and power box cannot be positioned within the standard supplied cable distance.
EOS 50m Control Panel to Relay Box Extension Cable - 14-946968 EOS 25m Sensor to Relay Box Extension Cable - 14-20015310 EOS 50m Sensor to Relay Box Extension Cable - 14-20015311System Expansion
Larger heaters, multiple cabins, or specialized wellness installations may require additional EOS system components.
EOS PEB NA Power Extension Box EOS Touch 3 Additional Cabin Power BoxOptional Connectivity and Cabin Functions
Optional modules and connected equipment must be compatible with the installed EOS system and configured by a qualified installer.
EOS Spa Control Remote Connectivity Module EOS Touch 3 Lighting Control Accessories EOS Touch 3 Ventilation Control AccessoriesSome links may temporarily lead to unpublished product handles while the companion EOS listings are being created. The links will begin working automatically when products using these handles are published.
What Is Included with the EOS Touch 3?
The control-panel package includes the touchscreen and its standard control-panel installation components. It does not include the required heater power box.
Included
- EOS Touch 3 control panel in selected White or Black finish
- Recessed control-panel housing
- Digital temperature sensor assembly
- 5-meter connecting cable with RJ10 connection and housing
- 5-meter connection cable with RJ14 and RJ10 modular plugs
- Control-system circuit board supplied with the panel package
- Two control-panel removal tools
- Four cable glands
- Four 4 x 25 mm wood screws
- Two 4 x 40 mm screws
- Installation and operation documentation
- Digital access to the EOS Touch 3 Instructions and Operation Manual
- Digital access to the EOS Touch 3 Technical Data Sheet
Not Included
- EOS power box required to operate the sauna heater
- Power extension box when required by system load
- EOS electric sauna heater
- Sauna stones
- Heater safety rail or guard
- Additional sensors beyond the supplied standard sensor package
- Extended communication or sensor cables
- Remote connectivity module
- Additional cabin control components
- Lighting, fans, vaporizer, or other controlled equipment
- Electrical disconnects, breakers, wiring, or conduit
- Installation labor
The heater will not operate from this control panel alone. A compatible EOS power box must be purchased separately and installed as part of the complete system.
EOS Touch 3 Control Panel Specifications
| Manufacturer | EOS |
|---|---|
| Model | TOUCH 3 |
| Product type | Digital touchscreen sauna control panel |
| Display | 7-inch capacitive full-color touchscreen |
| White panel SKU | 14-949068 |
| Black panel SKU | 14-949069 |
| White panel UPC | 652592102428 |
| Panel dimensions | Approximately 8.3 in W x 1.6 in D x 5.6 in H |
| Metric dimensions | Approximately 21 cm W x 4.2 cm D x 14.2 cm H |
| Mounting configuration | Recessed or flush-mounted control panel |
| Dry-mode temperature range | Approximately 86°F to 194°F / 30°C to 90°C |
| Published heating-time limitation | 1 hour |
| Maximum lighting output | 100W through the compatible system output |
| Maximum fan output | 150W through the compatible system output |
| Digital sensor temperature | 194°F / 90°C |
| Safety limiter in sauna | 282°F / 139°C |
| Safety limiter in heater | 320°F / 160°C |
| Housing material | Plastic housing with glass-front control panel |
| Maximum cabins | Up to 8 with required system extensions |
| Safety listing | CSA |
| Manufacturing origin | Designed, engineered, and manufactured in Germany |
| Warranty | 2-year limited consumer warranty and 2-year limited commercial warranty |
| Power box | Required and sold separately |
Control functions and electrical capacities depend on the complete installed system. Always defer to the current EOS wiring diagrams, power-box instructions, heater manual, and applicable electrical code.
EOS Touch 3 Manuals and Technical Documents
Review the installation, operation, and technical documentation before planning, wiring, configuring, or commissioning the EOS Touch 3 sauna control system.
Instructions and Operation Manual
Review the EOS Touch 3 installation and operation manual for system requirements, mounting guidance, wiring information, setup, commissioning, operating instructions, and safety requirements.
View Instructions and Operation ManualTechnical Data Sheet
Review the EOS Touch 3 data sheet for a concise overview of the control panel, supported functions, dimensions, operating parameters, system capabilities, and technical specifications.
View Technical Data SheetInstallation documents do not replace professional system design. Confirm the heater model, voltage, electrical phase, connected load, power box, sensors, cable lengths, and required extension equipment before installation.
How to Select the Correct Touch 3 System Components
Identify the Sauna Heater
Record the complete heater model, rated output, voltage, electrical phase, and installation configuration.
Select the Power Box
Match the EOS power box to the heater and electrical supply. Add a power extension box when required by the approved system design.
Plan Sensors and Cables
Confirm the sensor type, safety limiter, cable routing, cable lengths, control-panel position, and power-box location.
Professional System Design and Electrical Installation Required
The Touch 3 is part of a permanently wired sauna control system. Installation should be completed by qualified professionals familiar with the heater, power box, sensors, control wiring, and applicable electrical requirements.
- Install the control panel outside the hot sauna room
- Use the supplied recessed housing and mounting components
- Maintain the manufacturer-required environmental conditions
- Route communication cables separately from high-voltage wiring
- Do not substitute unapproved communication cables
- Install the temperature sensor in the specified location
- Connect the panel to the correct EOS power box
- Verify heater voltage, phase, and output before energizing
- Test all safety limiters and system functions
- Complete commissioning before the sauna is released for use
High-voltage warning: The Touch 3 control system involves line-voltage power equipment even though the wall panel uses low-voltage communication wiring. Do not attempt installation without the required qualifications and current EOS technical documents.
Manage Multiple Sauna Rooms from One Display
The Touch 3 can serve as a central interface for as many as eight cabins. Each additional room requires the appropriate EOS control and power equipment, sensors, communication wiring, configuration, and electrical infrastructure.
Residential Applications
A private installation may use one Touch 3 to control a single premium sauna or coordinate more than one compatible wellness cabin from a centralized location.
Commercial Applications
Fitness centers, hotels, wellness studios, and other commercial facilities can use the scalable platform to centralize the management of multiple supported sauna rooms.
"Up to eight cabins" describes the system's expansion capability. It does not mean that eight cabins can be connected to the control panel without separate EOS power and communication components.
Why Buy the EOS Touch 3 from My Luxury Home Spa?
Authentic EOS Equipment
Shop genuine EOS control panels, power boxes, extension cables, heaters, and model-specific sauna accessories.
System Compatibility Support
Send us the heater model and electrical specifications when you need help identifying the appropriate Touch 3 system components.
Clear Package Information
We clearly identify the required components that are not included so you can plan a complete installation before ordering.
EOS Touch 3 FAQ
What is the EOS Touch 3?
The EOS Touch 3 is a 7-inch capacitive touchscreen control panel for compatible EOS sauna control systems.
Is the EOS Touch 3 available in White and Black?
Yes. The White panel is SKU 14-949068, and the Black panel is SKU 14-949069.
Is the EOS power box included?
No. The required EOS power box is sold separately and must be selected to match the heater voltage, phase, output, and approved control-system design.
Can the Touch 3 operate a sauna heater by itself?
No. The Touch 3 is the user interface. A compatible EOS power box, heater, sensor system, electrical supply, and required wiring are needed for operation.
Does a temperature sensor come with the panel?
The published control-panel package includes a digital temperature sensor assembly and standard connecting cables. Additional sensors may be required for certain systems.
How many sauna cabins can one Touch 3 control?
One display can manage up to eight cabins when the required power boxes, system extensions, sensors, communication components, and configuration are installed.
What is the maximum sauna temperature setting?
The published dry-mode temperature range is approximately 86°F to 194°F, or 30°C to 90°C.
Can it control sauna lighting and ventilation?
Compatible power-box outputs and optional modules may support lighting, fans, and other approved cabin equipment. Available functions depend on the complete system configuration.
Does the Touch 3 include remote app control?
Remote functionality should not be assumed to be included with the control panel. A compatible remote-connectivity module, network connection, configuration, and current EOS support may be required.
Can I use any EOS power box with the Touch 3?
No. The power box must match the specific heater, voltage, phase, connected load, and approved EOS system design.
Can the control panel be installed inside the sauna?
No. Install the control panel outside the hot sauna room according to current EOS installation requirements.
Does the Touch 3 require professional installation?
Yes. The complete control system should be designed, wired, configured, and commissioned by qualified professionals.
Are longer cables available?
Yes. Model-specific extension cables are available for longer panel-to-power-box and sensor-to-power-box distances. Confirm the cable type before ordering.
Where can I find the EOS Touch 3 manuals?
The EOS Touch 3 Instructions and Operation Manual and the EOS Touch 3 Technical Data Sheet are available directly from this product page.
Is the sauna heater included?
No. The heater, power box, sauna stones, electrical installation, and other system components are sold separately.
What warranty is included?
Bathing Brands publishes a two-year limited consumer warranty and a two-year limited commercial warranty.
Confirm the Power Box Before Ordering
Send us the full EOS heater model, heater output, voltage, electrical phase, number of cabins, and desired control functions. We will help identify the Touch 3 components that should be reviewed for your project.
